11 Layout
11.1 Layout Guidelines
- Place the decoupling capacitor near the VCC pin and GND plane.
- Route the GND pattern as widely as possible for large GND currents.
- Connecting wire between the chained ICs should be as short as possible to reduce wire inductance.

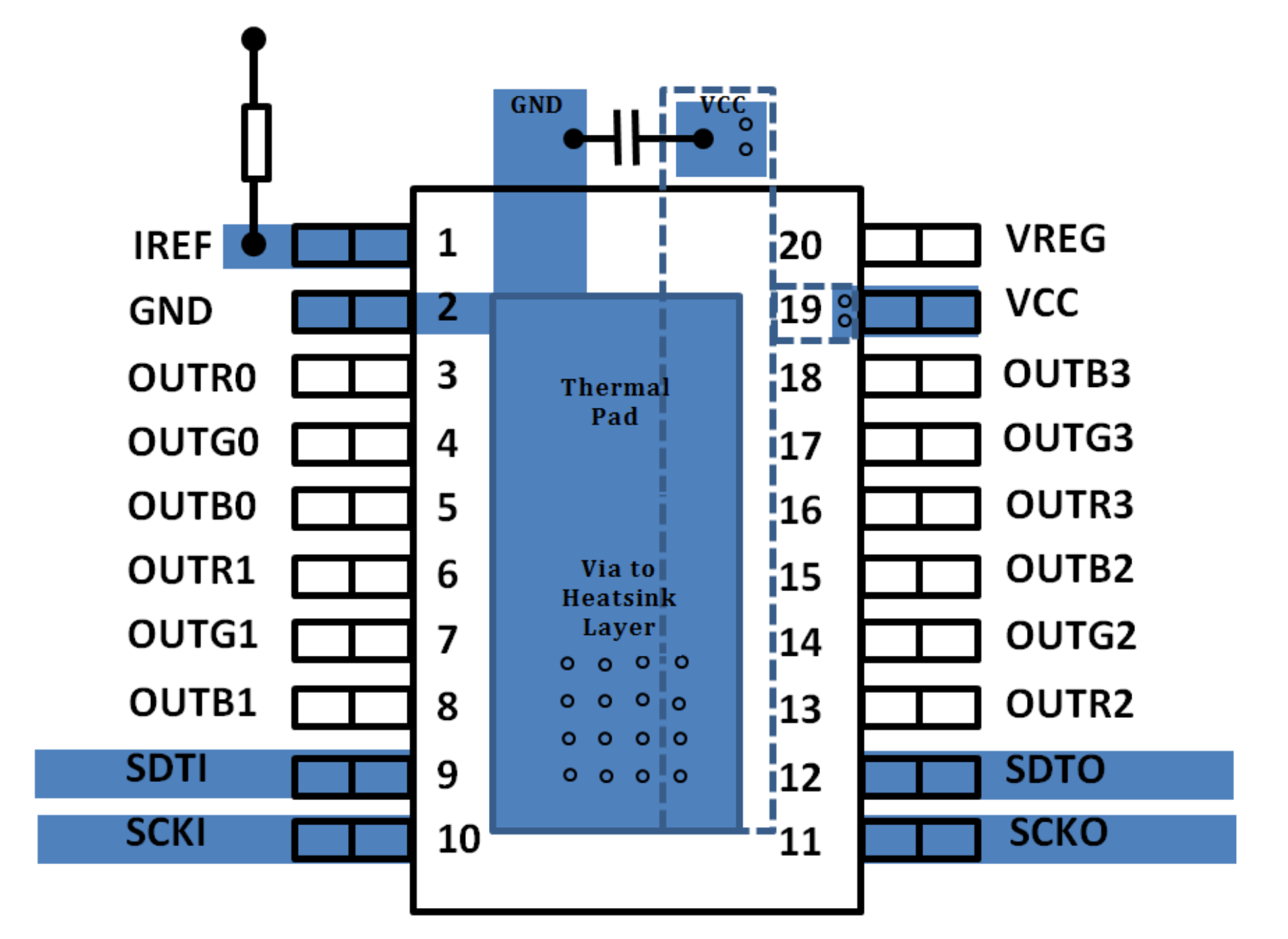

11.2 Layout Example
Figure 40. Layout Example
