8 Parameter Measurement Information

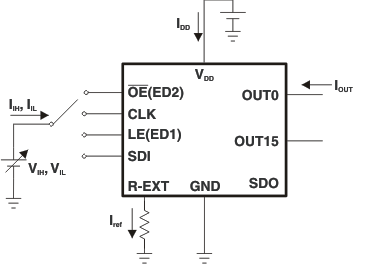

Figure 2. Test Circuit for Electrical Characteristics
Figure 3. Test Circuit for Switching Characteristics
Figure 4. Normal Mode Timing Waveforms

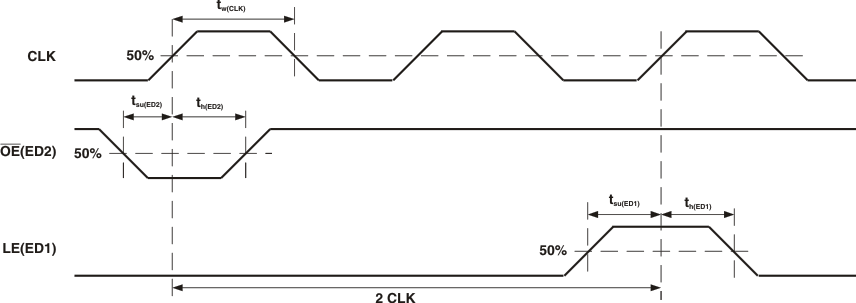

Figure 5. Switching to Special Mode Timing Waveforms

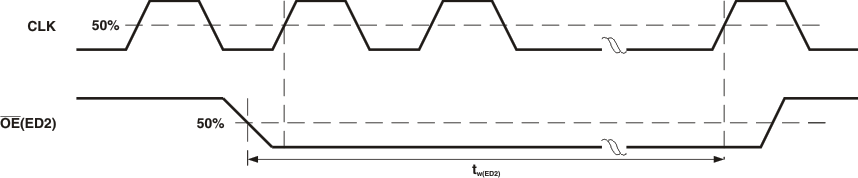

Figure 6. Reading Error Status Code Timing Waveforms
