12 Layout
12.1 Layout Guidelines
Pins 2, 3, 6, and 7 are connected internally to the anode. For the most precision, tie these pins together externally as well. Resistors should be placed as close as possible to the device.

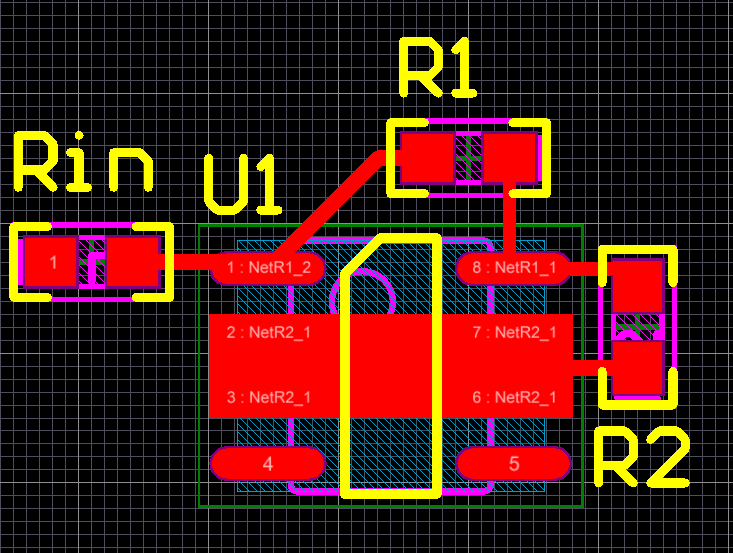

12.2 Layout Example
