ZHCSGF8A July 2017 – November 2018 THVD1500
PRODUCTION DATA.
- 1 特性
- 2 應用
- 3 說明
- 4 修訂歷史記錄
- 5 Pin Configuration and Functions
- 6 Specifications
- 7 Parameter Measurement Information
- 8 Detailed Description
- 9 Application and Implementation
- 10Power Supply Recommendations
- 11Layout
- 12器件和文檔支持
- 13機械、封裝和可訂購信息
封裝選項
請參考 PDF 數據表獲取器件具體的封裝圖。
機械數據 (封裝 | 引腳)
- D|8
散熱焊盤機械數據 (封裝 | 引腳)
訂購信息
7 Parameter Measurement Information

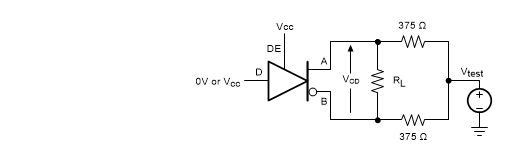

Figure 8. Measurement of Driver Differential Output Voltage With Common-Mode Load

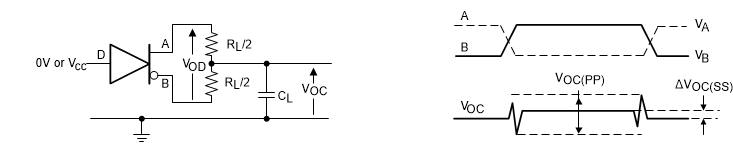

Figure 9. Measurement of Driver Differential and Common-Mode Output With RS-485 Load

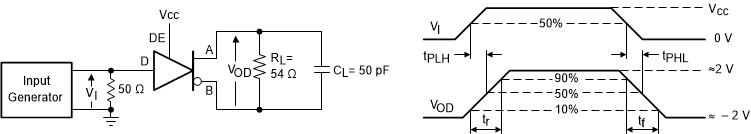

Figure 10. Measurement of Driver Differential Output Rise and Fall Times and Propagation Delays

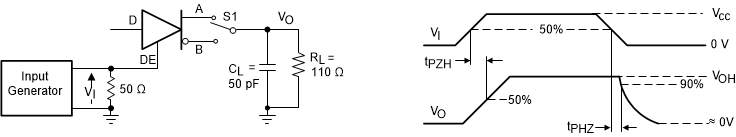

Figure 11. Measurement of Driver Enable and Disable Times With Active High Output and Pull-Down Load

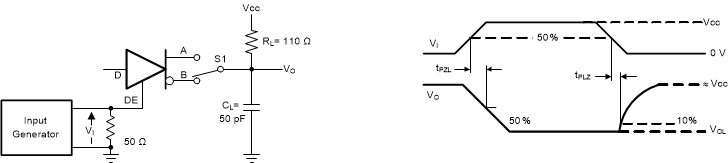

Figure 12. Measurement of Driver Enable and Disable Times With Active Low Output and Pull-up Load
Figure 13. Measurement of Receiver Output Short Circuit Current

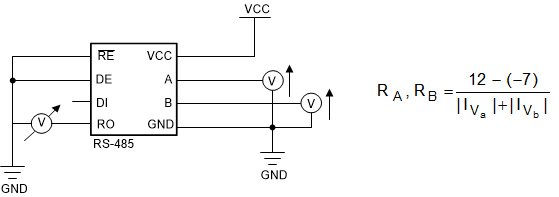

Figure 14. Measurement of Bus Impedance

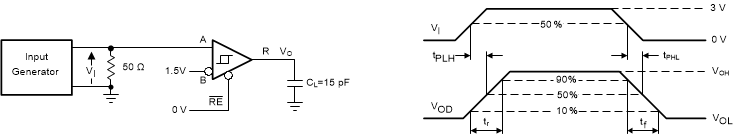

Figure 15. Measurement of Receiver Output Rise and Fall Times and Propagation Delays

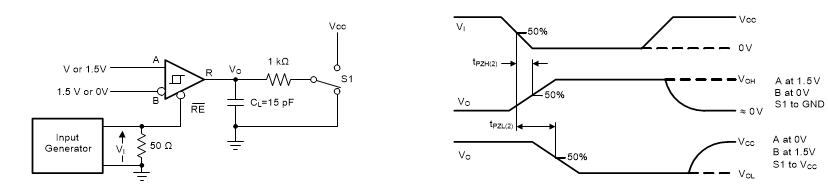

Figure 16. Measurement of Receiver Enable/Disable Times With Driver Enabled

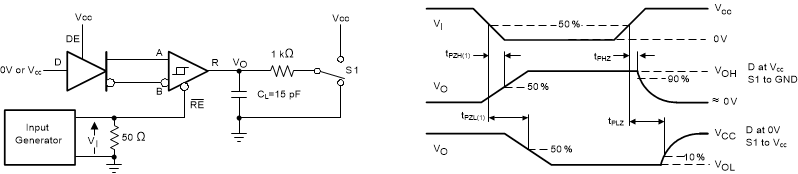

Figure 17. Measurement of Receiver Enable Times With Driver Disabled
