5.9 Typical Characteristics: VS = 28 V
At TA ? 25°C, AV = 10 V/V, RF = 1.24 kΩ, RL = 100 Ω, RS = 2.5 Ω, RADJ = 0 Ω, full-bias mode (unless otherwise noted).

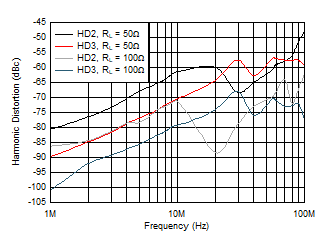

| VO = 2 VPP |

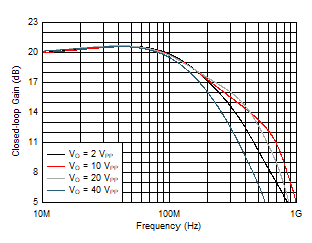

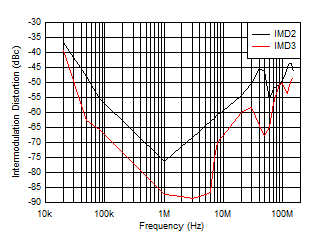

| AV = 10 V/V |

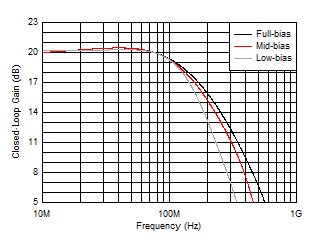

| VO = 40 VPP |

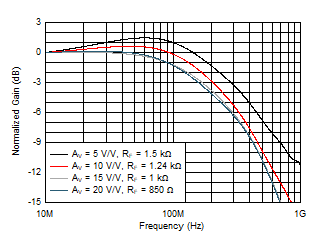

| VO = 2 VPP |

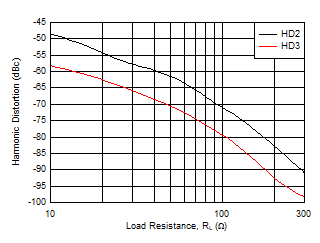

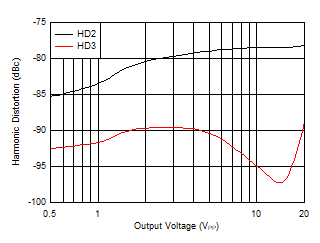

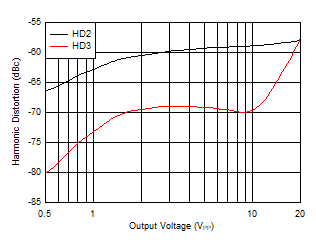

| f = 1 MHz, RL = 50 Ω |

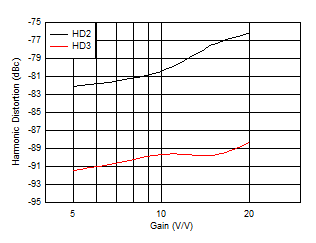

| f = 1 MHz, VO = 2 VPP |

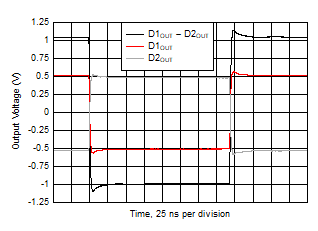

| VO step = 2 VPP |
| VO = 2 VPP |

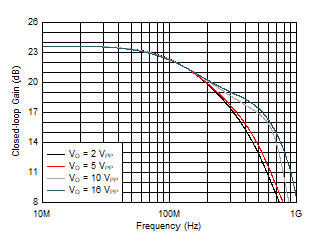

| AV = 15 V/V |
| f = 1 MHz, VO = 2 VPP RL = 50 Ω |

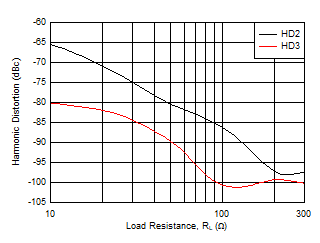

| f = 10 MHz, RL = 50 Ω |
| f = 10 MHz, VO = 2 VPP |

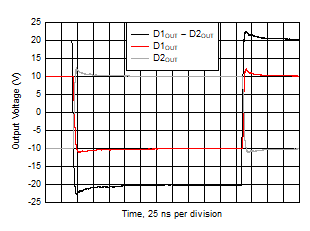

| VO step = 40 VPP |
