7.1.2 General Configuration

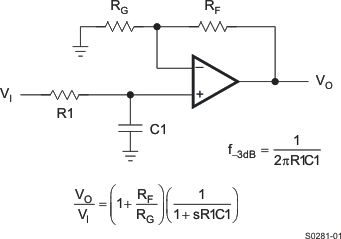

When receiving low-level signals, limiting the bandwidth of the incoming signals into the system is often required. Figure 7-2 shows how the simplest way to accomplish this limiting is to place an RC filter at the noninverting pin of the amplifier.
Figure 7-2 Single-Pole Low-Pass
Filter
