8 Parameter Measurement Information
Figure 8-1 Rise and
Fall Times of Data and Control Signals
Figure 8-2 Rise
and Fall Times of ODCK
Figure 8-3 ODCK
Frequency

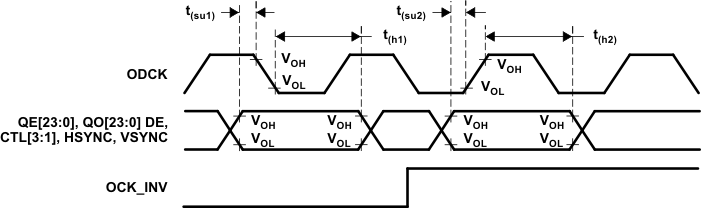

Figure 8-4 Data
Setup and Hold Times to Rising and Falling Edges of ODCK
Figure 8-5 ODCK
High to QE[23:0] Staggered Data Output

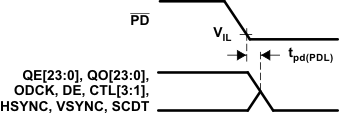

Figure 8-7 Delay
From PD Low to Hi-Z Outputs
Figure 8-9 Delay
From PD Low to High Before Inputs Are Active
Figure 8-6 Analog Input Intra-Pair Differential Skew
Figure 8-8 Delay
From PDO Low to Hi-Z Outputs
Figure 8-10 Minimum Time PD Low
Figure 8-11 Analog
Input Channel-to-Channel Skew
Figure 8-12 Time
Between DE Transitions to SCDT Low and SCDT High
Figure 8-13 Minimum
DE Low and Maximum DE High
