12.2 Layout Example

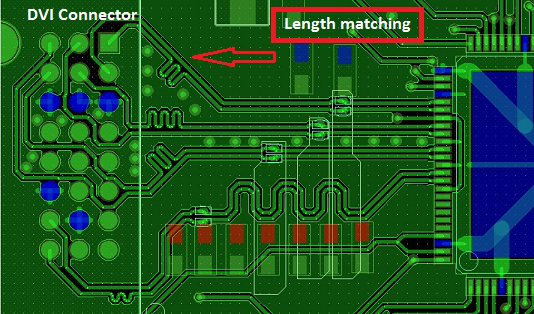

DVI connector trace matching:
Figure 12-2 DVI
Connector RoutingKeep data lines as far as possible from each other.

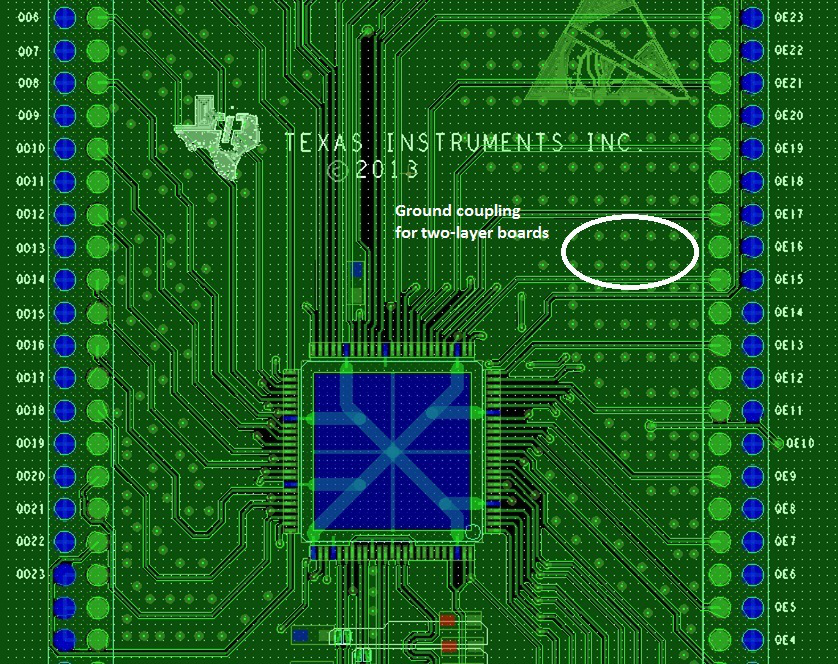

Figure 12-3 Data

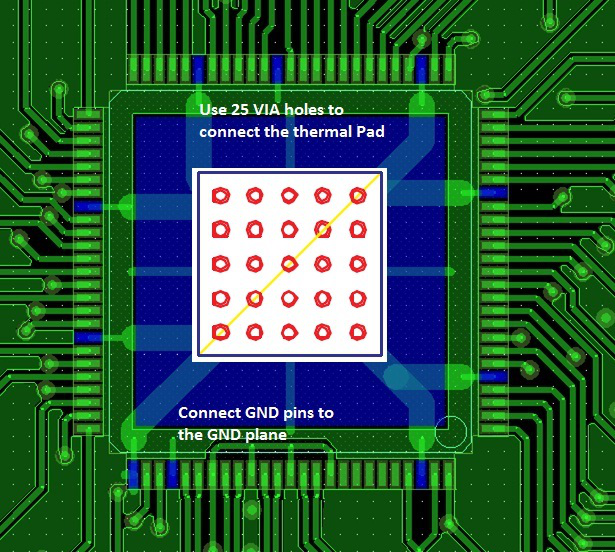

Lines RoutingConnect the thermal pad to ground.
Figure 12-4 Ground
Routing
