The TCAN4550 is typically used in applications with a host microprocessor or FPGA that does not include the link layer portion of the CAN protocol. Below is a typical application configuration for 3.3 V microprocessor applications.

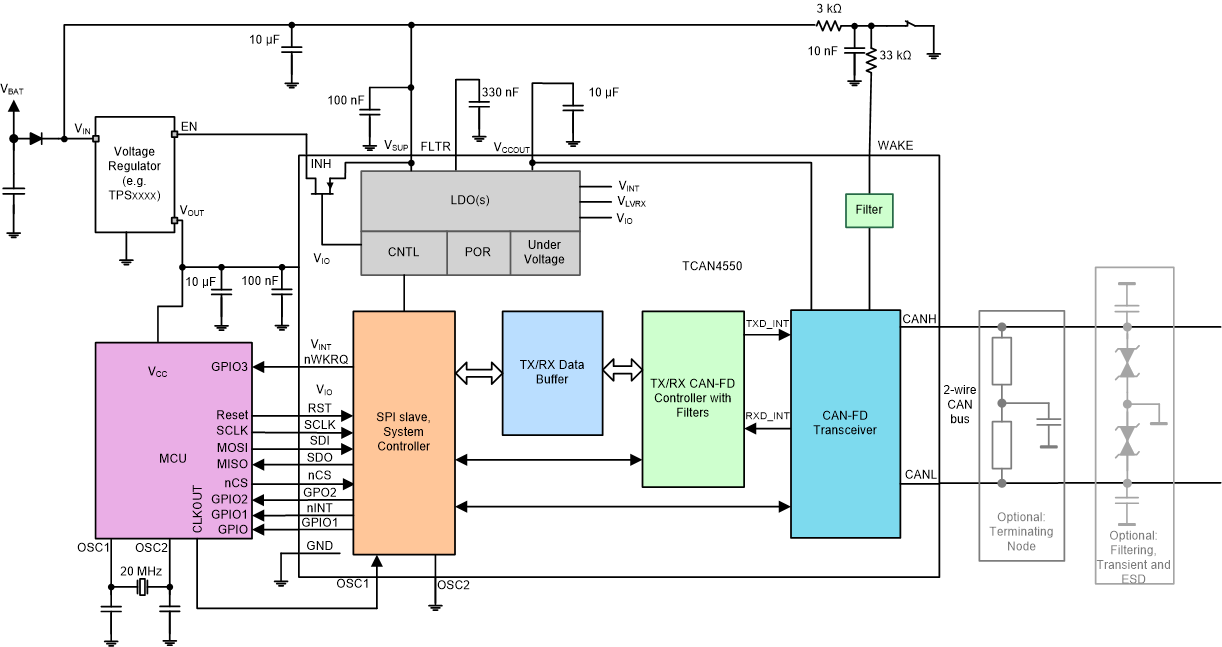

Figure 107. Typical CAN Applications for TCAN4550 for 3.3 V µC and Crystal Note: Add decoupling capacitors as needed.

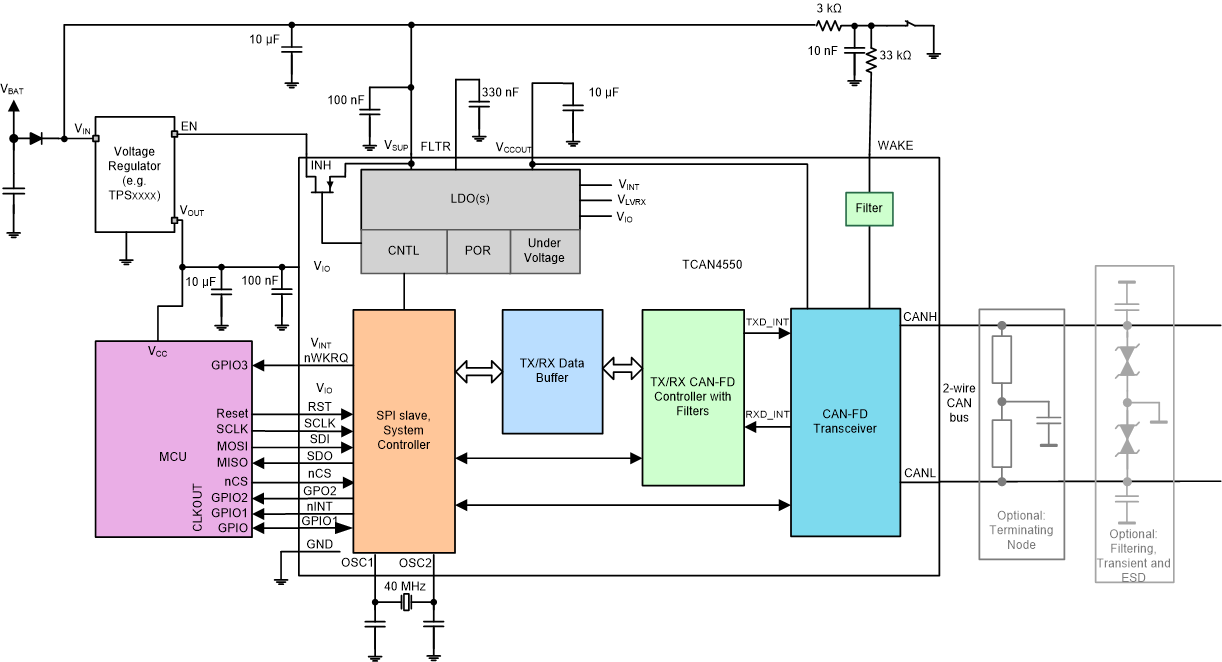

Figure 108. Typical CAN Applications for TCAN4550 for 3.3 V µC; Clock from MCU
