7.8 Typical Characteristics

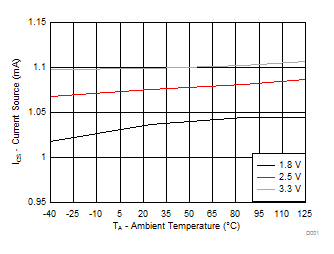

Figure 1. Current Source vs Ambient Temperature for Different VCCB

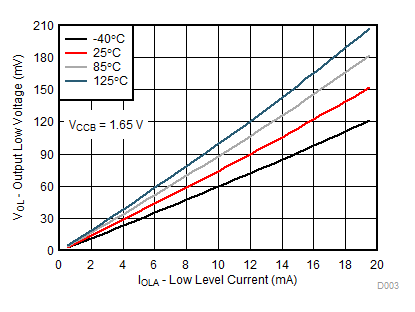

Figure 3. A-Side Output Low Voltage vs Low Level Current for Different TA (VCCB = 1.65 V)

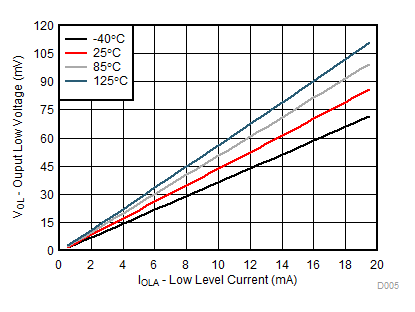

Figure 5. A-Side Output Low Voltage vs Low Level Current for Different TA (VCCB = 3.6 V)

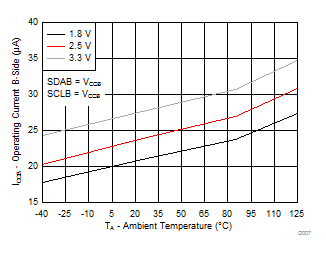

Figure 7. Operating Current B-Side vs Ambient Temperature for Different VCCB (B-Side = VCCB)

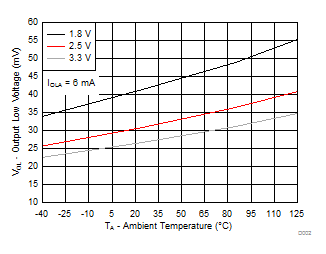

Figure 2. A-Side Output Low Voltage vs Ambient Temperature for Different VCCB (IOLA = 6 mA)

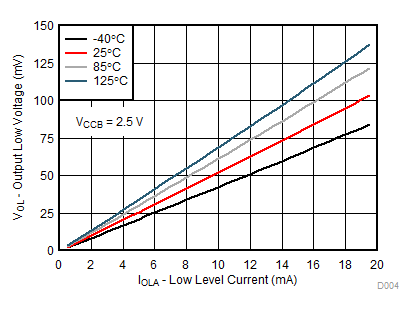

Figure 4. A-Side Output Low Voltage vs Low Level Current for Different TA (VCCB = 2.5 V)

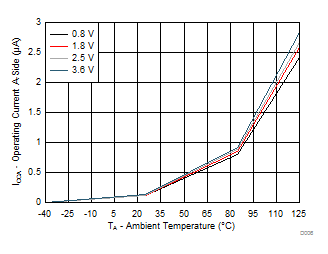

Figure 6. Operating Current A-Side vs Ambient Temperature for Different VCCA (A-Side = VCCA & GND)

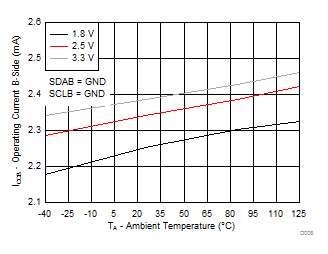

Figure 8. Operating Current B-Side vs Ambient Temperature for Different VCCB (B-Side = GND)
