7 Parameter Measurement Information
A. CL includes probe and jig capacitance.
B. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω,
tr/tf ≤ 30 ns.
tr/tf ≤ 30 ns.
C. The outputs are measured one at a time, with one transition per measurement.

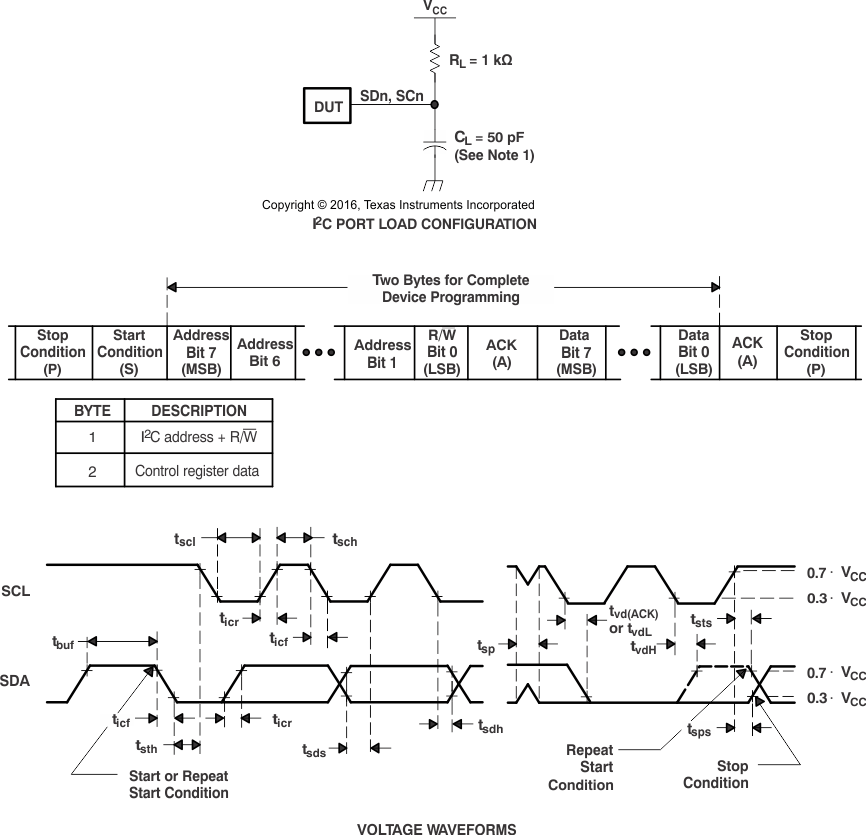

Figure 5. I2C Interface Load Circuit, Byte Descriptions, and Voltage Waveforms

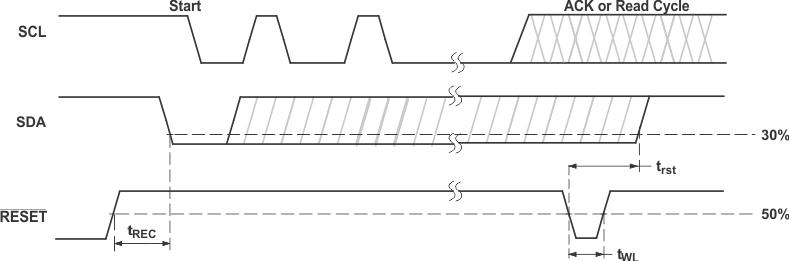

Figure 6. Reset Timing
