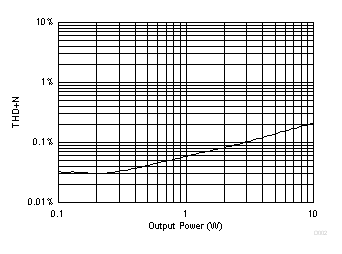

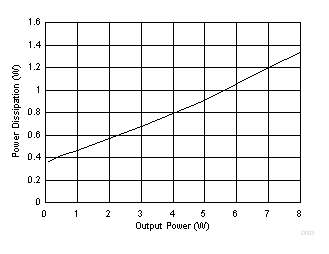

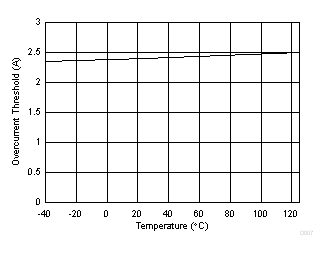

6.7 Typical Characteristics
TC = 25°C, PVDD = 14.4 V, RL = 4 Ω, P(O) = 1 W per channel, AES17 filter, 1-kHz input, default I2C settings (unless otherwise noted)
| f(SW) = 400 kHz | TA = 25°C | V(PVDD) = 14.4 V |
