10 Layout
10.1 Layout Guidelines
- Place the boost inductor between VBAT and SW close to device terminals with no VIAS between the device terminals and the inductor.
- Place the capacitor between VREG and VBOOST close to device terminals with no VIAS between the device terminals and capacitor.
- Place the capacitor between VBOOST/PVDD and GND close to device terminals with no VIAS between the device terminals and capacitor.
- Do not use VIAS for traces that carry high current. These include the traces for VBOOST, SW, PVDD and the speaker OUT+, OUT-.
- Use epoxy filled vias for the interior pads.
- Connect VSENSE+, VSENSE- as close as possible to the speaker.
- VSENSE+, VSENSE- should be connected between the EMI ferrite and the speaker if EMI ferrites are used on OUT+, OUT-.
- VSENSE+, VSENSE- should be connected between the EMI ferrite and the EMI capacitor if EMI capacitors are used. EMI ferrites must be used if EMI capacitors are used on OUT+, OUT-.
- If the analog inputs, IN+ and IN-, are:
- used, analog input traces should be routed symmetrically for true differential performance.
- used, do not run analog input traces parallel to digital lines.
- used, they should be ac coupled.
- not used, they should be shorted together.
- Use a ground plane with multiple vias for each terminal to create a low-impedance connection to GND for minimum ground noise.
- Use supply decoupling capacitors as shown in Figure 51 and Figure 56 and described in Power Supply Recommendations.
- Place EMI ferrites, if used, close to the device.
10.2 Layout Example

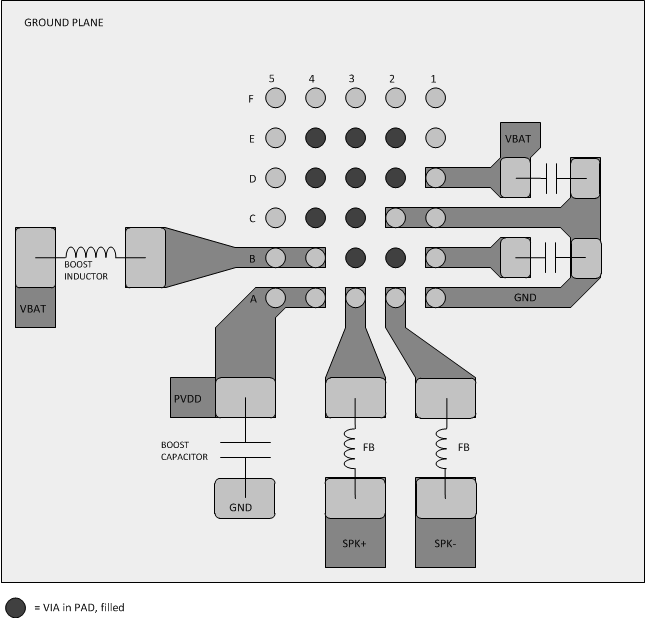

Figure 60. TAS2553 Board Layout10.3 Package Dimensions
The TAS2553 uses a 30-ball, 0.4 mm pitch WCSP package. The die length (D) and width (E) correspond to the package mechanical drawing at the end of the datasheet.
| DIMENSION | D | E |
|---|---|---|
| Max | 2885 μm | 2605 μm |
| Typ | 2855 μm | 2575 μm |
| Min | 2825 μm | 2545 μm |
