SCAS757B December 2003 – September 2014 SN74LVCH16374A
PRODUCTION DATA.
- 1 Features
- 2 Applications
- 3 Simplified Schematic
- 4 Revision History
- 5 Pin Configuration and Functions
- 6 Specifications
- 7 Detailed Description
- 8 Application and Implementation
- 9 Power Supply Recommendations
- 10Layout
- 11Device and Documentation Support
- 12Mechanical, Packaging, and Orderable Information
封裝選項
機械數據 (封裝 | 引腳)
散熱焊盤機械數據 (封裝 | 引腳)
訂購信息

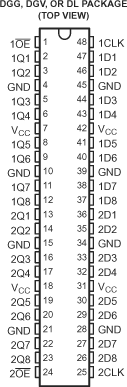

5 Pin Configuration and Functions
Pin Functions
Table 1. Pin Assignments(1)
(56-Ball GQL or ZQL Package)
| 1 | 2 | 3 | 4 | 5 | 6 | |
|---|---|---|---|---|---|---|
| A | 1OE | NC | NC | NC | NC | 1CLK |
| B | 1Q2 | 1Q1 | GND | GND | 1D1 | 1D2 |
| C | 1Q4 | 1Q3 | VCC | VCC | 1D3 | 1D4 |
| D | 1Q6 | 1Q5 | GND | GND | 1D5 | 1D6 |
| E | 1Q8 | 1Q7 | 1D7 | 1D8 | ||
| F | 2Q1 | 2Q2 | 2D2 | 2D1 | ||
| G | 2Q3 | 2Q4 | GND | GND | 2D4 | 2D3 |
| H | 2Q5 | 2Q6 | VCC | VCC | 2D6 | 2D5 |
| J | 2Q7 | 2Q8 | GND | GND | 2D8 | 2D7 |
| K | 2OE | NC | NC | NC | NC | 2CLK |
(1) NC – No internal connection
Table 2. Pin Assignments(1)
(54-Ball GRD or ZRD Package)
| 1 | 2 | 3 | 4 | 5 | 6 | |
|---|---|---|---|---|---|---|
| A | 1Q1 | NC | 1OE | 1CLK | NC | 1D1 |
| B | 1Q3 | 1Q2 | NC | NC | 1D2 | 1D3 |
| C | 1Q5 | 1Q4 | VCC | VCC | 1D4 | 1D5 |
| D | 1Q7 | 1Q6 | GND | GND | 1D6 | 1D7 |
| E | 2Q1 | 1Q8 | GND | GND | 1D8 | 2D1 |
| F | 2Q3 | 2Q2 | GND | GND | 2D2 | 2D3 |
| G | 2Q5 | 2Q4 | VCC | VCC | 2D4 | 2D5 |
| H | 2Q7 | 2Q6 | NC | NC | 2D6 | 2D7 |
| J | 2Q8 | NC | 2OE | 2CLK | NC | 2D8 |
(1) NC – No internal connection
