12 Layout
12.1 Layout Guidelines
To ensure reliability of the device, following common printed-circuit board layout guidelines is recommended.
- Bypass capacitors should be used on power supplies.
- Short trace lengths should be used to avoid excessive loading.
- Placing pads on the signal paths for loading capacitors or pullup resistors helps adjust rise and fall times of signals depending on the system requirements.
12.2 Layout Example

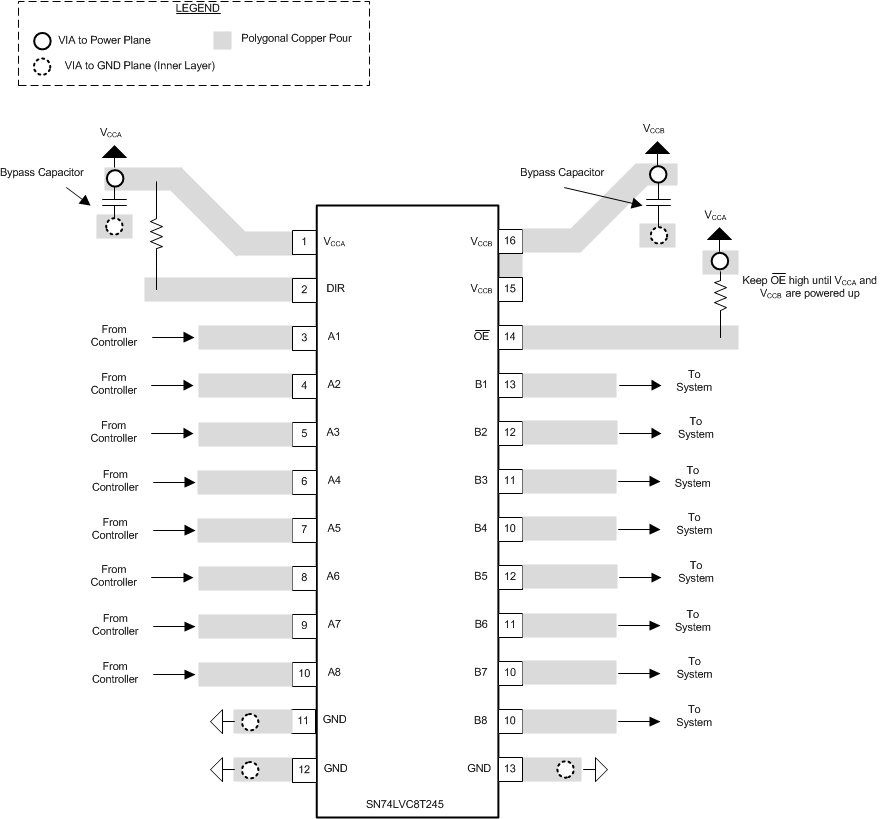

Figure 5. SN74LVC8T245-EP Layout
