SCAS595W October 1997 – October 2016 SN74LVC07A
PRODUCTION DATA.
- 1 Features
- 2 Applications
- 3 Description
- 4 Revision History
- 5 Pin Configuration and Functions
- 6 Specifications
- 7 Parameter Measurement Information
- 8 Detailed Description
- 9 Application and Implementation
- 10Power Supply Recommendations
- 11Layout
- 12Device and Documentation Support
- 13Mechanical, Packaging, and Orderable Information
封裝選項
請參考 PDF 數據表獲取器件具體的封裝圖。
機械數據 (封裝 | 引腳)
- D|14
- RGY|14
- DGV|14
- PW|14
- DB|14
- NS|14
散熱焊盤機械數據 (封裝 | 引腳)
- RGY|14
訂購信息
7 Parameter Measurement Information
7.1 VCC = 1.8 V ± 0.15 V

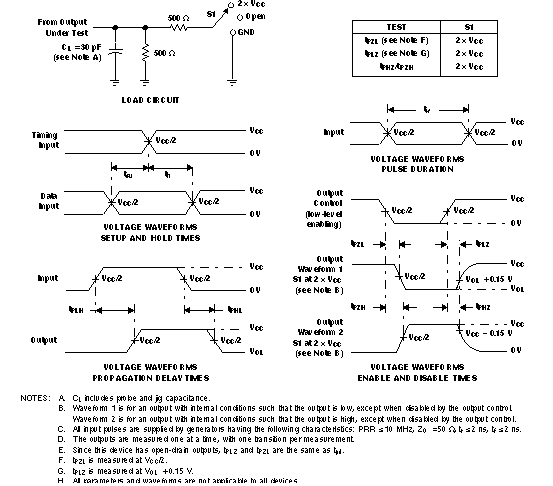

Figure 3. Load Circuit and Voltage Waveforms
7.2 VCC = 2.5 V ± 0.2 V
Figure 4. Load Circuit and Voltage Waveforms
7.3 VCC = 2.7 and 3.3 V ± 0.3 V

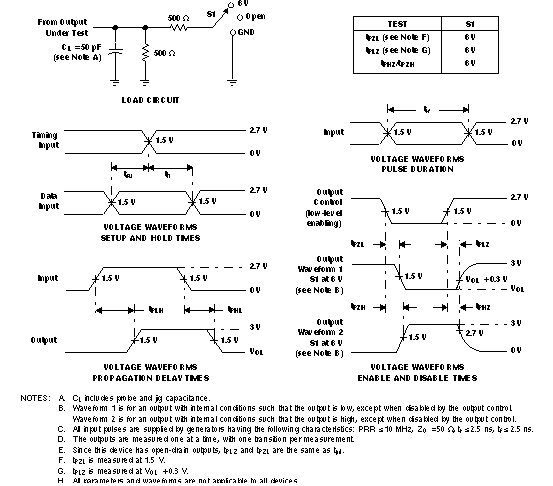

Figure 5. Load Circuit and Voltage Waveforms
7.4 VCC = 5 V ± 0.5 V

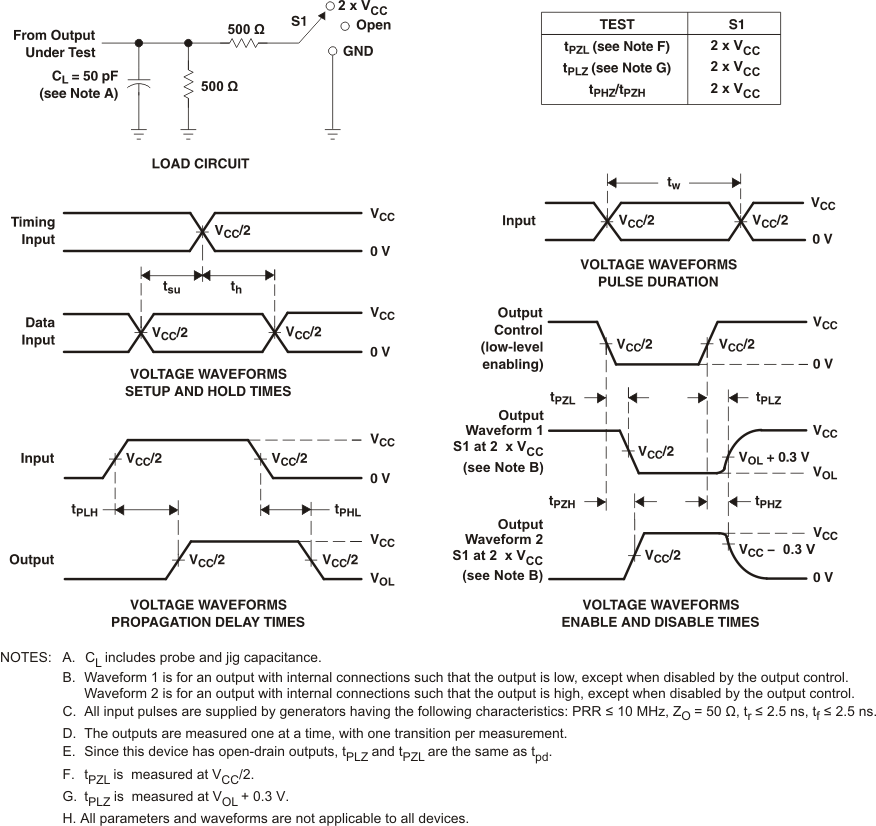

Figure 6. Load Circuit and Voltage Waveforms
