SCLS381M August 1997 – March 2015 SN74LV74A

UNLESS OTHERWISE NOTED, this document contains PRODUCTION DATA.

封裝選項

請參考 PDF 數據表獲取器件具體的封裝圖。

機械數據 (封裝 | 引腳)

D|14
RGY|14
DGV|14
PW|14
DB|14
NS|14

散熱焊盤機械數據 (封裝 | 引腳)

RGY|14
- QFND039Q

訂購信息

6 Specifications

6.1 Absolute Maximum Ratings⁽¹⁾

over operating free-air temperature range (unless otherwise noted)

			MIN	MAX	UNIT
V_CC	Supply voltage		–0.5	7	V
V_I	Input voltage⁽²⁾		–0.5	7	V
V_O	Voltage applied to any output in the high-impedance or power-off state⁽²⁾		–0.5	7	V
V_O	Output voltage⁽²⁾⁽³⁾		–0.5	V_CC + 0.5	V
I_IK	Input clamp current	V_I < 0		–20	mA
I_OK	Output clamp current	V_O < 0		–50	mA
I_O	Continuous output current	V_O= 0 to V_CC		±25	mA
	Continuous current through V_CC or GND			±50	mA
θ_JA	Package thermal impedance	D package⁽⁴⁾		86	°C/W
		DB package⁽⁴⁾		96
		DGV package⁽⁴⁾		127
		NS package⁽⁴⁾		76
		PW package⁽⁴⁾		113
		RGY package⁽⁵⁾		47
T_stg	Storage temperature		–65	150	°C

(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

(2) The input and output negative-voltage ratings may be exceeded if the input and output current ratings are observed.

(3) This value is limited to 5.5 V maximum.

(4) The package thermal impedance is calculated in accordance with JESD 51-7.

(5) The package thermal impedance is calculated in accordance with JESD 51-5.

6.2 ESD Ratings

			VALUE	UNIT
V_(ESD)	Electrostatic discharge	Human body model (HBM), per ANSI/ESDA/JEDEC JS-001⁽¹⁾	2000	V
V_(ESD)	Electrostatic discharge	Charged-device model (CDM), per JEDEC specification JESD22-C101⁽²⁾	500	V

(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.

(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

6.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)⁽¹⁾

			SN54LV74A⁽²⁾		SN74LV74A		UNIT
			MIN	MAX	MIN	MAX	UNIT
V_CC	Supply voltage		2	5.5	2	5.5	V
V_IH	High-level input voltage	V_CC = 2 V	1.5				V
		V_CC = 2.3 V to 2.7 V	V_CC × 0.7		V_CC × 0.7
		V_CC = 3 V to 3.6 V	V_CC × 0.7		V_CC × 0.7
		V_CC = 4.5 V to 5.5 V	V_CC × 0.7		V_CC × 0.7
V_IL	Low-level input voltage	V_CC = 2 V		0.5		0.5	V
		V_CC = 2.3 V to 2.7 V		V_CC × 0.3		V_CC × 0.3
		V_CC = 3 V to 3.6 V		V_CC × 0.3		V_CC × 0.3
		V_CC = 4.5 V to 5.5 V		V_CC × 0.3		V_CC × 0.3
V_I	Input voltage		0	5.5	0	5.5	V
V_O	Output voltage		0	V_CC	0	V_CC	V
I_OH	High-level output current	V_CC = 2 V		–50		–50	µA
		V_CC = 2.3 V to 2.7 V		–2		–2	mA
		V_CC = 3 V to 3.6 V		–6		–6
		V_CC = 4.5 V to 5.5 V		–12		–12
I_OL	Low-level output current	V_CC = 2 V		50		50	µA
		V_CC = 2.3 V to 2.7 V		2		2	mA
		V_CC = 3 V to 3.6 V		6		6
		V_CC = 4.5 V to 5.5 V		12		12
Δt/Δv	Input transition rise or fall rate	V_CC = 2.3 V to 2.7 V		200		200	ns/V
		V_CC = 3 V to 3.6 V		100		100
		V_CC = 4.5 V to 5.5 V		20		20
T_A	Operating free-air temperature		–55	125	–40	125	°C

(1) All unused inputs of the device must be held at V_CC or GND to ensure proper device operation. Refer to the TI application report, Implications of Slow or Floating CMOS Inputs, SCBA004.

(2) Product Preview

6.4 Electrical Characteristics

over recommended operating free-air temperature range (unless otherwise noted)

PARAMETER	TEST CONDITIONS		V_CC	SN54LV74A⁽¹⁾			SN74LV74A –40°C to 85°C			SN74LV74A –40°C to 125°C			UNIT
PARAMETER	TEST CONDITIONS		V_CC	MIN	TYP	MAX	MIN	TYP	MAX	MIN	TYP	MAX	UNIT
V_OH	I_OH = –50 µA		2 V to 5.5 V	V_CC–0.1			V_CC–0.1			V_CC–0.1			V
	I_OH = –2 mA		2.3 V	2			2			2
	I_OH = –6 mA		3 V	2.48			2.48			2.48
	I_OH = –12 mA		4.5 V	3.8			3.8			3.8
V_OL	I_OL = 50 µA		2 V to 5.5 V			0.1			0.1			0.1	V
	I_OL = 2 mA		2.3 V			0.4			0.4			0.4
	I_OL = 6 mA		3 V			0.44			0.44			0.44
	I_OL = 12 mA		4.5 V			0.55			0.55			0.55
I_I	V_I = 5.5 V or GND		0 to 5.5 V			±1			±1			±1	µA
I_CC	V_I = V_CC or GND,	I_O = 0	5.5 V			20			20			20	µA
I_off	V_I or V_O = 5.5 V		0			5			5			5	µA
C_i	V_I = V_CC or GND		3.3 V		2			2			2		pF
C_i	V_I = V_CC or GND		5 V		2			2			2		pF

(1) Product Preview

6.5 Switching Characteristics: V_CC = 2.5 V ± 0.2 V

over recommended operating free-air temperature range, V_CC = 2.5 V ± 0.2 V (unless otherwise noted) (see Figure 3)

PARAMETER	FROM (INPUT)	TO (OUTPUT)	LOAD CAPACITANCE	T_A = 25°C			SN54LV74A⁽¹⁾		SN74LV74A –40°C to 85°C		SN74LV74A –40°C to 125°C		UNIT
PARAMETER	FROM (INPUT)	TO (OUTPUT)	LOAD CAPACITANCE	MIN	TYP	MAX	MIN	MAX	MIN	MAX	MIN	MAX	UNIT
f_max			C_L = 15 pF	50⁽²⁾	100⁽²⁾		40⁽²⁾		40		40		MHz
f_max			C_L= 50 pF	30	70		25		25		25		MHz
t_pd	PRE or CLR	Q or Q	C_L = 15 pF		9.8⁽²⁾	14.8⁽²⁾	1⁽²⁾	17⁽²⁾	1	17	1	18	ns
t_pd	CLK	Q or Q	C_L = 15 pF		11.1⁽²⁾	16.4⁽²⁾	1⁽²⁾	19⁽²⁾	1	19	1	20	ns
t_pd	PRE or CLR	Q or Q	C_L= 50 pF		13	17.4	1	20	1	20	1	21	ns
t_pd	CLK	Q or Q	C_L= 50 pF		14.2	20	1	23	1	23	1	24	ns

(1) Product Preview

(2) On products compliant to MIL-PRF-38535, this parameter is not production tested.

6.6 Switching Characteristics: V_CC = 3.3 V ± 0.3 V

over recommended operating free-air temperature range, V_CC = 3.3 V ± 0.3 V (unless otherwise noted) (see Figure 3)

PARAMETER	FROM (INPUT)	TO (OUTPUT)	LOAD CAPACITANCE	T_A = 25°C			SN54LV74A⁽¹⁾		SN74LV74A –40°C to 85°C		SN74LV74A –40°C to 125°C		UNIT
PARAMETER	FROM (INPUT)	TO (OUTPUT)	LOAD CAPACITANCE	MIN	TYP	MAX	MIN	MAX	MIN	MAX	MIN	MAX	UNIT
f_max			C_L = 15 pF	80⁽²⁾	140⁽²⁾		70⁽²⁾		70		70		MHz
f_max			C_L= 50 pF	50	90		45		45		45		MHz
t_pd	PRE or CLR	Q or Q	C_L = 15 pF		6.9⁽²⁾	12.3⁽²⁾	1⁽²⁾	14.5⁽²⁾	1	14.5	1	15.5	ns
t_pd	CLK	Q or Q	C_L = 15 pF		7.9⁽²⁾	11.9⁽²⁾	1⁽²⁾	14⁽²⁾	1	14	1	15	ns
t_pd	PRE or CLR	Q or Q	C_L= 50 pF		9.2	15.8	1	18	1	18	1	19	ns
t_pd	CLK	Q or Q	C_L= 50 pF		10.2	15.4	1	17.5	1	17.5	1	18.5	ns

(1) Product Preview

(2) On products compliant to MIL-PRF-38535, this parameter is not production tested.

6.7 Switching Characteristics: V_CC = 5 V ± 0.5 V

over recommended operating free-air temperature range, V_CC = 5 V ± 0.5 V (unless otherwise noted) (see Figure 3)

PARAMETER	FROM (INPUT)	TO (OUTPUT)	LOAD CAPACITANCE	T_A = 25°C			SN54LV74A⁽¹⁾		SN74LV74A –40°C to 85°C		SN74LV74A –40°C to 125°C		UNIT
PARAMETER	FROM (INPUT)	TO (OUTPUT)	LOAD CAPACITANCE	MIN	TYP	MAX	MIN	MAX	MIN	MAX	MIN	MAX	UNIT
f_max			C_L = 15 pF	130⁽²⁾	180⁽²⁾		110⁽²⁾		110		110		MHz
f_max			C_L= 50 pF	90	140		75		75		75		MHz
t_pd	PRE or CLR	Q or Q	C_L = 15 pF		5⁽²⁾	7.7⁽²⁾	1⁽²⁾	9⁽²⁾	1	9	1	10	ns
t_pd	CLK	Q or Q	C_L = 15 pF		5.6⁽²⁾	7.3⁽²⁾	1⁽²⁾	8.5⁽²⁾	1	8.5	1	9.5	ns
t_pd	PRE or CLR	Q or Q	C_L= 50 pF		6.6	9.7	1	11	1	11	1	12	ns
t_pd	CLK	Q or Q	C_L= 50 pF		7.2	9.3	1	10.5	1	10.5	1	11.5	ns

(1) Product Preview

(2) On products compliant to MIL-PRF-38535, this parameter is not production tested.

6.8 Timing Requirements: V_CC = 2.5 V ± 0.2 V

over recommended operating free-air temperature range, V_CC = 2.5 V ± 0.2 V (unless otherwise noted) (see Figure 3)

			T_A = 25°C		SN54LV74A⁽¹⁾		SN74LV74A –40°C to 85°C		SN74LV74A –40°C to 125°C		UNIT
			MIN	MAX	MIN	MAX	MIN	MAX	MIN	MAX	UNIT
t_w	Pulse duration	PRE or CLR low	8		9		9		9		ns
t_w	Pulse duration	CLK	8		9		9		9		ns
t_su	Setup time before CLK↑	Data	8		9		9		9		ns
t_su	Setup time before CLK↑	PRE or CLR inactive	7		7		7		7		ns
t_h	Hold time, data after CLK↑		0.5		0.5		0.5		0.5		ns

(1) Product Preview

6.9 Timing Requirements: V_CC = 3.3 V ± 0.3 V

over recommended operating free-air temperature range, V_CC = 3.3 V ± 0.3 V (unless otherwise noted) (see Figure 3)

			T_A = 25°C		SN54LV74A⁽¹⁾		SN74LV74A –40°C to 85°C		SN74LV74A –40°C to 125°C		UNIT
			MIN	MAX	MIN	MAX	MIN	MAX	MIN	MAX	UNIT
t_w	Pulse duration	PRE or CLR low	6		7		7		7		ns
t_w	Pulse duration	CLK	6		7		7		7		ns
t_su	Setup time before CLK↑	Data	6		7		7		7		ns
t_su	Setup time before CLK↑	PRE or CLR inactive	5		5		5		5		ns
t_h	Hold time, data after CLK↑		0.5		0.5		0.5		0.5		ns

(1) Product Preview

6.10 Timing Requirements: V_CC = 5 V ± 0.5 V

over recommended operating free-air temperature range, V_CC = 5 V ± 0.5 V (unless otherwise noted) (see Figure 3)

			T_A = 25°C		SN54LV74A⁽¹⁾		SN74LV74A –40°C to 85°C		SN74LV74A –40°C to 125°C		UNIT
			MIN	MAX	MIN	MAX	MIN	MAX	MIN	MAX	UNIT
t_w	Pulse duration	PRE or CLR low	5		5		5		5		ns
t_w	Pulse duration	CLK	5		5		5		5		ns
t_su	Setup time before CLK↑	Data	5		5		5		5		ns
t_su	Setup time before CLK↑	PRE or CLR inactive	3		3		3		3		ns
t_h	Hold time, data after CLK↑		0.5		0.5		0.5		0.5		ns

(1) Product Preview

6.11 Noise Characteristics⁽¹⁾

V_CC = 3.3 V, C_L = 50 pF, T_A = 25°C

PARAMETER		SN74LV74A			UNIT
PARAMETER		MIN	TYP	MAX	UNIT
V_OL(P)	Quiet output, maximum dynamic V_OL		0.1	0.8	V
V_OL(V)	Quiet output, minimum dynamic V_OL		0	–0.8	V
V_OH(V)	Quiet output, minimum dynamic V_OH		3.2		V
V_IH(D)	High-level dynamic input voltage	2.31			V
V_IL(D)	Low-level dynamic input voltage			0.99	V

(1) Characteristics are for surface-mount packages only.

6.12 Operating Characteristics

T_A = 25°C

PARAMETER		TEST CONDITIONS		V_CC	TYP	UNIT
C_pd	Power dissipation capacitance	C_L = 50 pF	f = 10 MHz	3.3 V	21	pF
C_pd	Power dissipation capacitance	C_L = 50 pF	f = 10 MHz	5 V	23	pF

6.13 Typical Characteristics

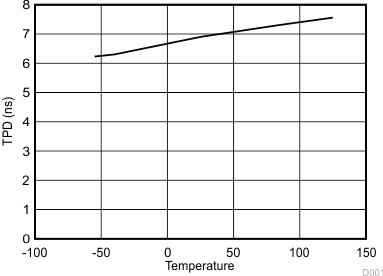

Figure 1. TPD vs. Temperature at 3.3 V

Figure 2. TPD vs. VCC at 25°C
