3 說明
'LV393A 器件包含八個觸發器和額外的門控，可在單個封裝中實現兩個獨立的 4 位計數器。這些器件旨在于 2V 至 5.5V VCC 下運行。
封裝信息
| 器件型號 | 封裝(1) | 封裝尺寸（標稱值） |
|---|---|---|
| SN74LV393A-Q1 | PW（TSSOP，14） | 5mm x 4.4mm |
(1) 如需了解所有可用封裝，請參閱數據表末尾的可訂購產品附錄。

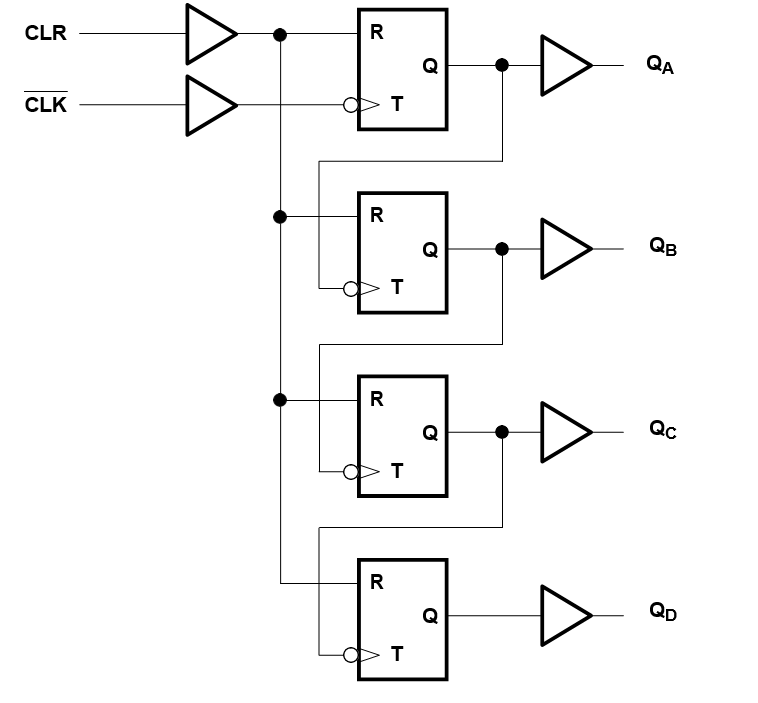

圖 3-1 邏輯圖，每個計數器（正邏輯）
