ZHCSRA6N April 1998 – December 2023 SN74LV373A
PRODMIX
- 1
- 1 特性
- 2 應用
- 3 說明
- 4 Pin Configuration and Functions
-
5 Specifications
- 5.1 Absolute Maximum Ratings
- 5.2 ESD Ratings
- 5.3 Recommended Operating Conditions
- 5.4 Thermal Information
- 5.5 Electrical Characteristics
- 5.6 Timing Requirements, VCC = 2.5 V ± 0.2 V
- 5.7 Timing Requirements, VCC = 3.3 V ± 0.3 V
- 5.8 Timing Requirements, VCC = 5 V ± 0.5 V
- 5.9 Switching Characteristics, VCC = 2.5 V ± 0.2 V
- 5.10 Switching Characteristics, VCC = 3.3 V ± 0.3 V
- 5.11 Switching Characteristics, VCC = 5 V ± 0.5 V
- 5.12 Noise Characteristics
- 5.13 Operating Characteristics
- 5.14 Typical Characteristics
- 6 Parameter Measurement Information
- 7 Detailed Description
- 8 Application and Implementation
- 9 Device and Documentation Support
- 10Revision History
- 11Mechanical, Packaging, and Orderable Information
封裝選項
請參考 PDF 數據表獲取器件具體的封裝圖。
機械數據 (封裝 | 引腳)
- DGV|20
- DB|20
- NS|20
- PW|20
- DW|20
- RGY|20
- DGS|20
散熱焊盤機械數據 (封裝 | 引腳)
- RGY|20
訂購信息
3 說明
SN74LV373A 器件是一款八路透明 D 類鎖存器，可在 2V 至 5.5 VCC 下運行。
封裝信息
| 器件型號 | 封裝 | 封裝尺寸（標稱值） |
|---|---|---|
| SN74LV373A | VQFN (20) | 4.50 x 3.50mm |
| SSOP (20) | 7.50 x 5.30mm | |
| TSSOP (20) | 6.50 x 4.40mm | |
| TVSOP (20) | 5.00 x 4.40mm | |
| SOIC (20) | 12.80 x 7.50mm | |
| SO (20) | 12.60mm × 5.30mm |

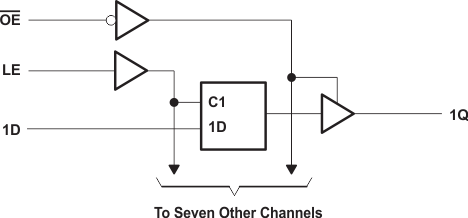

簡化原理圖
