ZHCSBS6D November 2013 – August 2024 SN74LV1T02
PRODUCTION DATA
5 Pin Configuration and Functions

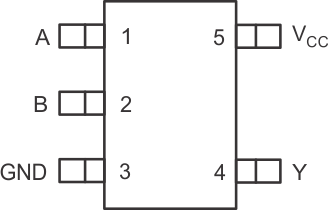

Figure 5-1 DCK
or DBV Package, 5-Pin SC70 or SOT-23 (Top
View)Table 5-1 Pin Functions
| PIN | TYPE(1) | DESCRIPTION | |
|---|---|---|---|
| NAME | NO. | ||
| A | 1 | I | Input A |
| B | 2 | I | Input B |
| GND | 3 | G | Ground |
| Y | 4 | O | Output Y |
| VCC | 5 | P | Positive supply |
(1) I = Input, O = Output, I/O =
Input or Output, G = Ground, P = Power.
