ZHCSQR1R April 1998 – March 2023 SN74LV165A
PRODMIX
- 1 特性
- 2 應用
- 3 說明
- 4 Revision History
- 5 Pin Configuration and Functions
-
6 Specifications
- 6.1 Absolute Maximum Ratings
- 6.2 ESD Ratings
- 6.3 Recommended Operating Conditions
- 6.4 Thermal Information
- 6.5 Electrical Characteristics
- 6.6 Timing Requirements, VCC = 2.5 V ± 0.2 V
- 6.7 Timing Requirements, VCC = 3.3 V ± 0.3 V
- 6.8 Timing Requirements, VCC = 5 V ± 0.5 V
- 6.9 Switching Characteristics, VCC = 2.5 V ± 0.2 V
- 6.10 Switching Characteristics, VCC = 3.3 V ± 0.3 V
- 6.11 Switching Characteristics,VCC = 5 V ± 0.5 V
- 6.12 Timing Diagrams
- 6.13 Operating Characteristics
- 6.14 Typical Characteristics
- 7 Parameter Measurement Information
- 8 Detailed Description
- 9 Application and Implementation
- 10Device and Documentation Support
- 11Mechanical, Packaging, and Orderable Information
封裝選項
機械數據 (封裝 | 引腳)
- DGV|16
- PW|16
- BQB|16
- DB|16
- RGY|16
- D|16
- NS|16
散熱焊盤機械數據 (封裝 | 引腳)
- BQB|16
訂購信息
8.3.4 Clamp Diode Structure

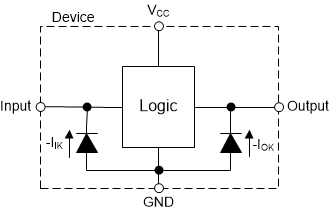

Figure 8-1 shows the inputs and outputs to this device have negative clamping diodes only.
CAUTION: Voltages beyond the
values specified in the Absolute Maximum Ratings table can cause damage to
the device. The input and output voltage ratings may be exceeded if the input and
output clamp-current ratings are observed.
Figure 8-1 Electrical Placement of
Clamping Diodes for Each Input and Output
