7 Parameter Measurement Information
- Phase relationships between waveforms were chosen arbitrarily. All input pulses are supplied by generators having the following characteristics: PRR ≤ 1 MHz, ZO = 50 Ω, tt < 2.5 ns.
- The outputs are measured one at a time, with one input transition per measurement.
1. CL= 50 pF and includes probe and jig capacitance.
Figure 5. Load Circuit
1. The maximum between tPLH and TPHL is used for tpd.

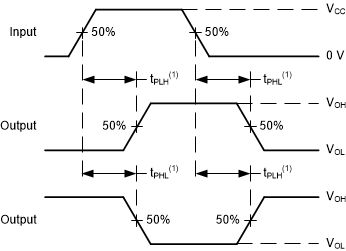

Figure 7. Voltage Waveforms
Propagation Delays

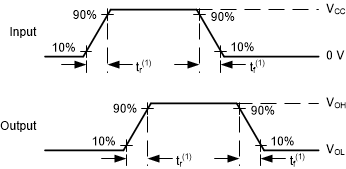

Figure 6. Voltage Waveforms
Transition Times
