6.7 Typical Characteristics
TA = 25°C

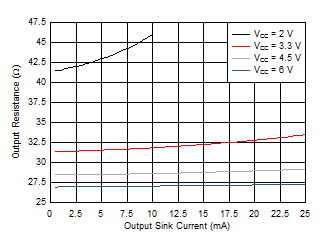

Figure 6-1 Output driver resistance in LOW state.

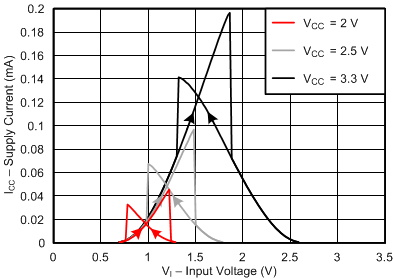

Figure 6-3 Supply current across input voltage, 2-, 2.5-, and 3.3-V supply
Figure 6-2 Output driver resistance in HIGH state.

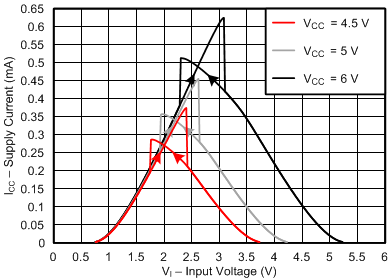

Figure 6-4 Supply current across input voltage, 4.5-, 5-, and 6-V supply
