7.2 Functional Block Diagram
Pin numbers shown are for the D, J, N, NS, PW, and W packages.

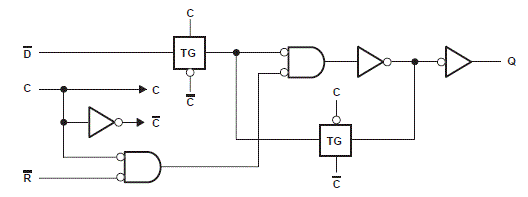

Figure 7-1 Logic Diagram, Each Internal
Latch (positive logic)
