7 Parameter Measurement Information
A. CL includes probe and
jig capacitance.
B. Waveform 1 is for an output with
internal conditions such that the output is low except when disabled by the
output control. Waveform 2 is for an output with internal conditions such that
the output is high except when disabled by the output control.
C. All input pulses are supplied by
generators having the following characteristics: PRR ≤ 10 MHz, ZO =
50 Ω, tr ≤ 2 ns, tf ≤ 2 ns.
D. The outputs are measured one at a
time with one transition per measurement.
E. tPLZ and
tPHZ are the same as tdis.
F. tPZL and
tPZH are the same as ten.
G. tPLH and
tPHL are the same as tpd.
H. All parameters and waveforms are
not applicable to all devices.

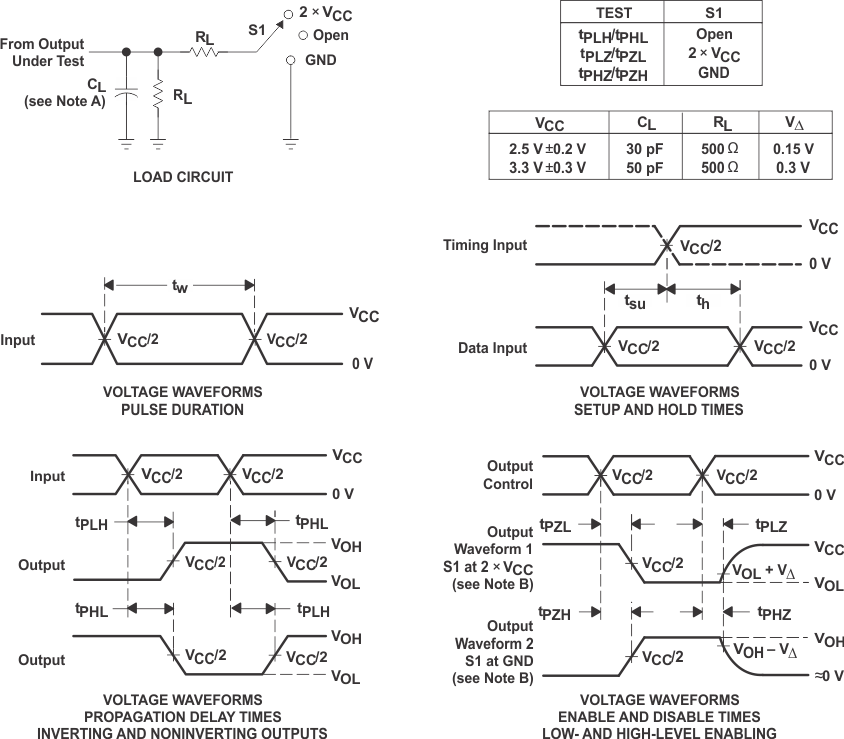

Figure 7-1 Load
Circuit and Voltage Waveforms
