SCES503J NOVEMBER 2003 – June 2015 SN74AUP1G57
PRODUCTION DATA.
- 1 Features
- 2 Applications
- 3 Description
- 4 Revision History
- 5 Pin Configuration and Functions
-
6 Specifications
- 6.1 Absolute Maximum Ratings
- 6.2 ESD Ratings
- 6.3 Recommended Operating Conditions
- 6.4 Thermal Information
- 6.5 Electrical Characteristics
- 6.6 Switching Characteristics, CL = 5 pF
- 6.7 Switching Characteristics, CL = 10 pF
- 6.8 Switching Characteristics, CL = 15 pF
- 6.9 Switching Characteristics, CL = 30 pF
- 6.10 Operating Characteristics
- 6.11 Typical Characteristics
- 7 Parameter Measurement Information
- 8 Detailed Description
- 9 Application and Implementation
- 10Power Supply Recommendations
- 11Layout
- 12Device and Documentation Support
- 13Mechanical, Packaging, and Orderable Information
封裝選項
機械數(shù)據(jù) (封裝 | 引腳)
散熱焊盤機械數(shù)據(jù) (封裝 | 引腳)
- DRY|6
訂購信息
6 Specifications
6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted)(1)| MIN | MAX | UNIT | |||
|---|---|---|---|---|---|
| VCC | Supply voltage | –0.5 | 4.6 | V | |
| VI | Input voltage(2) | –0.5 | 4.6 | V | |
| VO | Voltage applied to any output in the high-impedance or power-off state(2) | –0.5 | 4.6 | V | |
| VO | Output voltage in the high or low state(2) | –0.5 | VCC + 0.5 | V | |
| IIK | Input clamp current | VI < 0 | –50 | mA | |
| IOK | Output clamp current | VO < 0 | –50 | mA | |
| IO | Continuous output current | ±20 | mA | ||
| Continuous current through VCC or GND | ±50 | mA | |||
| TJ | Junction temperature | 150 | °C | ||
| Tstg | Storage temperature | –65 | 150 | °C | |
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) The input negative-voltage and output voltage ratings may be exceeded if the input and output current ratings are observed.
6.2 ESD Ratings
| VALUE | UNIT | |||
|---|---|---|---|---|
| V(ESD) | Electrostatic discharge | Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) | 2000 | V |
| Charged-device model (CDM), per JEDEC specification JESD22-C101(2) | 1000 | |||
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
6.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)(1)| MIN | MAX | UNIT | |||
|---|---|---|---|---|---|
| VCC | Supply voltage | 0.8 | 3.6 | V | |
| VI | Input voltage | 0 | 3.6 | V | |
| VO | Output voltage | 0 | VCC | V | |
| IOH | High-level output current | VCC = 0.8 V | –20 | μA | |
| VCC = 1.1 V | –1.1 | mA | |||
| VCC = 1.4 V | –1.7 | ||||
| VCC = 1.65 | –1.9 | ||||
| VCC = 2.3 V | –3.1 | ||||
| VCC = 3 V | –4 | ||||
| IOL | Low-level output current | VCC = 0.8 V | 20 | μA | |
| VCC = 1.1 V | 1.1 | mA | |||
| VCC = 1.4 V | 1.7 | ||||
| VCC = 1.65 V | 1.9 | ||||
| VCC = 2.3 V | 3.1 | ||||
| VCC = 3 V | 4 | ||||
| TA | Operating free-air temperature | –40 | 85 | °C | |
(1) All unused inputs of the device must be held at VCC or GND to ensure proper device operation. See the TI application report Implications of Slow or Floating CMOS Inputs, SCBA004.
6.4 Thermal Information
| THERMAL METRIC(1) | SN74AUP1G57 | UNIT | ||||||
|---|---|---|---|---|---|---|---|---|
| DBV (SOT-23) | DCK (SC70) | DRL (SOT) | DSF (SON) | DRY (SON) | YFP/YZP (DSBGA) | |||
| 6 PINS | 6 PINS | 6 PINS | 6 PINS | 6 PINS | 6 PINS | |||
| RθJA | Junction-to-ambient thermal resistance | 165 | 259 | 142 | 300 | 234 | 123 | °C/W |
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report, SPRA953.
6.5 Electrical Characteristics
over operating free-air temperature range (unless otherwise noted)| PARAMETER | TEST CONDITIONS | VCC | TA = 25°C | TA = –40°C to 85°C | UNIT | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| MIN | TYP | MAX | MIN | MAX | ||||||
| VT+
Positive-going input threshold voltage |
0.8 V | 0.3 | 0.6 | 0.3 | 0.6 | V | ||||
| 1.1 V | 0.53 | 0.9 | 0.53 | 0.9 | ||||||
| 1.4 V | 0.74 | 1.11 | 0.74 | 1.11 | ||||||
| 1.65 V | 0.91 | 1.29 | 0.91 | 1.29 | ||||||
| 2.3 V | 1.37 | 1.77 | 1.37 | 1.77 | ||||||
| 3 V | 1.88 | 2.29 | 1.88 | 2.29 | ||||||
| VT-
Negative-going input threshold voltage |
0.8 V | 0.1 | 0.6 | 0.1 | 0.6 | V | ||||
| 1.1 V | 0.26 | 0.65 | 0.26 | 0.65 | ||||||
| 1.4 V | 0.39 | 0.75 | 0.39 | 0.75 | ||||||
| 1.65 V | 0.47 | 0.84 | 0.47 | 0.84 | ||||||
| 2.3 V | 0.69 | 1.04 | 0.69 | 1.04 | ||||||
| 3 V | 0.88 | 1.24 | 0.88 | 1.24 | ||||||
| ΔVT
Hysteresis (VT+ – VT–) |
0.8 V | 0.07 | 0.5 | 0.07 | 0.5 | V | ||||
| 1.1 V | 0.08 | 0.46 | 0.08 | 0.46 | ||||||
| 1.4 V | 0.18 | 0.56 | 0.18 | 0.56 | ||||||
| 1.65 V | 0.27 | 0.66 | 0.27 | 0.66 | ||||||
| 2.3 V | 0.53 | 0.92 | 0.53 | 0.92 | ||||||
| 3 V | 0.79 | 1.31 | 0.79 | 1.31 | ||||||
| VOH | IOH = –20 μA | 0.8 V to 3.6 V | VCC – 0.1 | VCC – 0.1 | V | |||||
| IOH = –1.1 mA | 1.1 V | 0.75 × VCC | 0.7 × VCC | |||||||
| IOH = –1.7 mA | 1.4 V | 1.11 | 1.03 | |||||||
| IOH = –1.9 mA | 1.65 V | 1.32 | 1.3 | |||||||
| IOH = –2.3 mA | 2.3 V | 2.05 | 1.97 | |||||||
| IOH = –3.1 mA | 1.9 | 1.85 | ||||||||
| IOH = –2.7 mA | 3 V | 2.72 | 2.67 | |||||||
| IOH = –4 mA | 2.6 | 2.55 | ||||||||
| VOL | IOL = 20 μA | 0.8 V to 3.6 V | 0.1 | 0.1 | V | |||||
| IOL = 1.1 mA | 1.1 V | 0.3 × VCC | 0.3 × VCC | |||||||
| IOL = 1.7 mA | 1.4 V | 0.31 | 0.37 | |||||||
| IOL = 1.9 mA | 1.65 V | 0.31 | 0.35 | |||||||
| IOL = 2.3 mA | 2.3 V | 0.31 | 0.33 | |||||||
| IOL = 3.1 mA | 0.44 | 0.45 | ||||||||
| IOL = 2.7 mA | 3 V | 0.31 | 0.33 | |||||||
| IOL = 4 mA | 0.44 | 0.45 | ||||||||
| II (all inputs) | VI = GND to 3.6 V | 0 V to 3.6 V | 0.1 | 0.5 | μA | |||||
| Ioff | VI or VO = 0 V to 3.6 V | 0 V | 0.2 | 0.6 | μA | |||||
| ΔIoff | VI or VO = 0 V to 3.6 V | 0 V to 0.2 V | 0.2 | 0.6 | μA | |||||
| ICC | VI = GND or (VCC to 3.6 V), | IO = 0 | 0.8 V to 3.6 V | 0.5 | 0.9 | μA | ||||
| ΔICC | VI = VCC – 0.6 V(1), | IO = 0 | 3.3 V | 40 | 50 | μA | ||||
| Ci | VI = VCC or GND | 0 V | 1.5 | pF | ||||||
| 3.6 V | 1.5 | |||||||||
| Co | VO = GND | 0 V | 3 | pF | ||||||
(1) One input at VCC – 0.6 V, other inputs at VCC or GND.
6.6 Switching Characteristics, CL = 5 pF
over recommended operating free-air temperature range, CL = 5 pF (unless otherwise noted) (see Figure 2 and Figure 3)| PARAMETER | FROM (INPUT) |
TO (OUTPUT) |
VCC | TA = 25°C | TA = –40°C to 85°C | UNIT | |||
|---|---|---|---|---|---|---|---|---|---|
| MIN | TYP | MAX | MIN | MAX | |||||
| tpd | In0, In1, or In2 | Y | 0.8 V | 28.6 | ns | ||||
| 1.2 V ± 0.1 V | 2.6 | 9.5 | 13.6 | 2.1 | 17.1 | ||||
| 1.5 V ± 0.1 V | 1.9 | 6.4 | 9.1 | 1.4 | 11.1 | ||||
| 1.8 V ± 0.15 V | 1.4 | 5.2 | 7.1 | 0.9 | 8.9 | ||||
| 2.5 V ± 0.2 V | 1.1 | 3.6 | 5.3 | 0.6 | 6.3 | ||||
| 3.3 V ± 0.3 V | 1 | 2.9 | 4.4 | 0.5 | 5.3 | ||||
6.7 Switching Characteristics, CL = 10 pF
over recommended operating free-air temperature range, CL = 10 pF (unless otherwise noted) (see Figure 2 and Figure 3)| PARAMETER | FROM (INPUT) |
TO (OUTPUT) |
VCC | TA = 25°C | TA = –40°C to 85°C | UNIT | |||
|---|---|---|---|---|---|---|---|---|---|
| MIN | TYP | MAX | MIN | MAX | |||||
| tpd | In0, In1, or In2 | Y | 0.8 V | 32.8 | ns | ||||
| 1.2 V ± 0.1 V | 2.6 | 11 | 15.1 | 2.1 | 18.1 | ||||
| 1.5 V ± 0.1 V | 1.9 | 7.4 | 10.3 | 1.4 | 12.4 | ||||
| 1.8 V ± 0.15 V | 1.4 | 6 | 8.1 | 0.9 | 10 | ||||
| 2.5 V ± 0.2 V | 1.1 | 4.3 | 6.1 | 0.6 | 7.3 | ||||
| 3.3 V ± 0.3 V | 1 | 3.5 | 5.1 | 0.5 | 6.1 | ||||
6.8 Switching Characteristics, CL = 15 pF
over recommended operating free-air temperature range, CL = 15 pF (unless otherwise noted) (see Figure 2 and Figure 3)| PARAMETER | FROM (INPUT) |
TO (OUTPUT) |
VCC | TA = 25°C | TA = –40°C to 85°C | UNIT | |||
|---|---|---|---|---|---|---|---|---|---|
| MIN | TYP | MAX | MIN | MAX | |||||
| tpd | In0, In1, or In2 | Y | 0.8 V | 37 | ns | ||||
| 1.2 V ± 0.1 V | 3.6 | 12.3 | 16.8 | 3.1 | 20.1 | ||||
| 1.5 V ± 0.1 V | 2.8 | 8.3 | 11.4 | 2.3 | 13.7 | ||||
| 1.8 V ± 0.15 V | 2.1 | 6.7 | 9 | 1.6 | 11.1 | ||||
| 2.5 V ± 0.2 V | 1.7 | 4.9 | 6.8 | 1.2 | 8.1 | ||||
| 3.3 V ± 0.3 V | 1.5 | 3.9 | 5.6 | 1 | 6.7 | ||||
6.9 Switching Characteristics, CL = 30 pF
over recommended operating free-air temperature range, CL = 30 pF (unless otherwise noted) (see Figure 2 and Figure 3)| PARAMETER | FROM (INPUT) |
TO (OUTPUT) |
VCC | TA = 25°C | TA = –40°C to 85°C | UNIT | |||
|---|---|---|---|---|---|---|---|---|---|
| MIN | TYP | MAX | MIN | MAX | |||||
| tpd | In0, In1, or In2 | Y | 0.8 V | 49.3 | ns | ||||
| 1.2 V ± 0.1 V | 5 | 15.7 | 21.4 | 4.5 | 26.5 | ||||
| 1.5 V ± 0.1 V | 3.9 | 10.8 | 14.4 | 3.4 | 17.4 | ||||
| 1.8 V ± 0.15 V | 3.1 | 8.8 | 11.4 | 2.6 | 14 | ||||
| 2.5 V ± 0.2 V | 2.6 | 6.4 | 8.4 | 2.1 | 10.1 | ||||
| 3.3 V ± 0.3 V | 2.3 | 5.3 | 7 | 1.8 | 8.4 | ||||
6.10 Operating Characteristics
TA = 25°C| PARAMETER | TEST CONDITIONS | VCC | TYP | UNIT | |
|---|---|---|---|---|---|
| Cpd | Power dissipation capacitance | f = 10 MHz | 0.8 V | 4 | pF |
| 1.2 V ± 0.1 V | 4 | ||||
| 1.5 V ± 0.1 V | 4 | ||||
| 1.8 V ± 0.15 V | 4 | ||||
| 2.5 V ± 0.2 V | 4.1 | ||||
| 3.3 V ± 0.3 V | 4.3 | ||||
6.11 Typical Characteristics

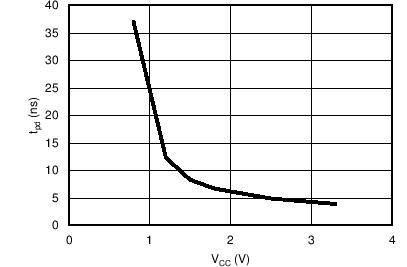

Figure 1. tpd vs VCC, 15-pF Load
