7 Parameter Measurement Information
7.1 Propagation Delays, Setup and Hold Times, and Pulse Duration

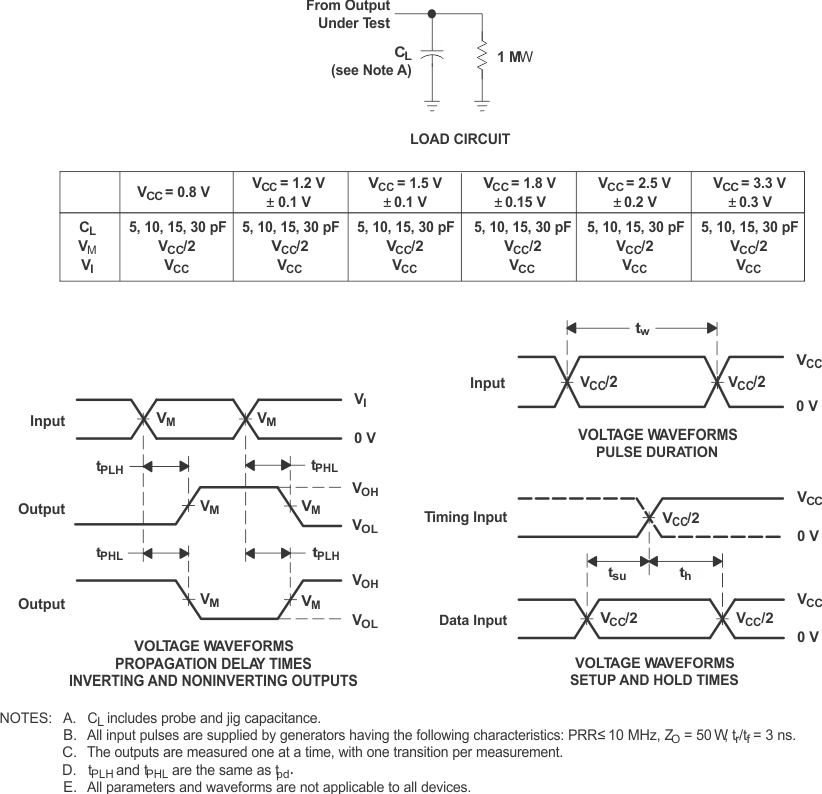

Figure 3. Load Circuit And Voltage Waveforms
7.2 Enable and Disable Times

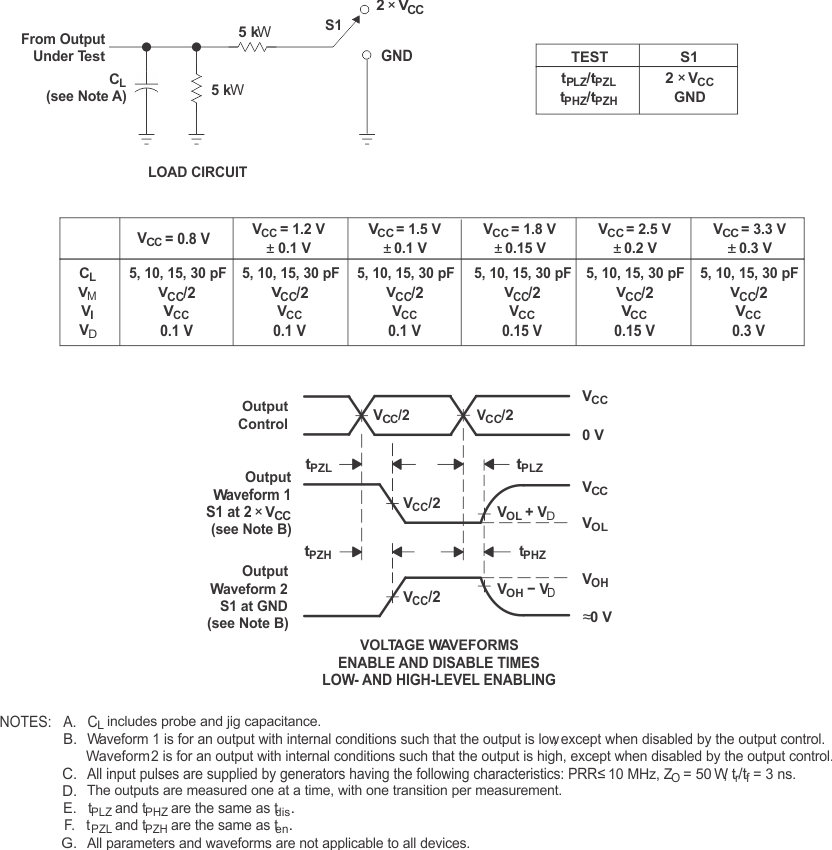

Figure 4. Load Circuit And Voltage Waveforms
