SCES373R September 2001 – June 2017 SN74AUC1G07
UNLESS OTHERWISE NOTED, this document contains PRODUCTION DATA.
- 1 Features
- 2 Applications
- 3 Description
- 4 Revision History
- 5 Pin Configuration and Functions
- 6 Specifications
- 7 Parameter Measurement Information
- 8 Detailed Description
- 9 Device and Documentation Support
- 10Mechanical, Packaging, and Orderable Information
封裝選項
請參考 PDF 數據表獲取器件具體的封裝圖。
機械數據 (封裝 | 引腳)
- DBV|5
- DCK|5
- YZP|5
散熱焊盤機械數據 (封裝 | 引腳)
訂購信息
5 Pin Configuration and Functions
DBV Package
5-Pin SOT-23
Top View
DCK Package
5-Pin SC70
Top View

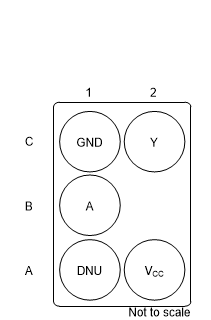

YZP Package
5-Pin DSBGA
Bottom View
See mechanical drawings for dimensions.
DNU – Do not use
NC – No internal connection
Pin Functions
| PIN | I/O | DESCRIPTION | ||
|---|---|---|---|---|
| NAME | DBV, DCK | YZP | ||
| A | 2 | B1 | I | Logic input |
| DNU | — | A1 | — | Do not use |
| NC | 1 | — | — | No internal connection |
| GND | 3 | C1 | — | Ground |
| VCC | 5 | A2 | — | Positive supply |
| Y | 4 | C2 | O | Open-drain output |
