4 Pin Configuration and Functions

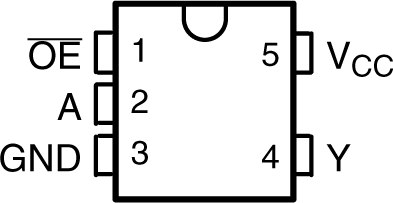

Figure 4-1 DBV Package, 5-Pin SOT-23;
DCK Package (Top View)
Figure 4-2 DTX Package, 5-Pin X2SON
(Top View)Table 4-1 Pin Functions
| PIN | TYPE(1) | DESCRIPTION | |
|---|---|---|---|
| NO. | NAME | ||
| 1 | OE | I | Output Enable |
| 2 | A | I | Input A |
| 3 | GND | — | Ground Pin |
| 4 | Y | O | Output Y |
| 5 | VCC | — | Power Pin |
(1) Signal Types: I = Input, O = Output, I/O = Input or Output
