4 Pin Configuration and Functions

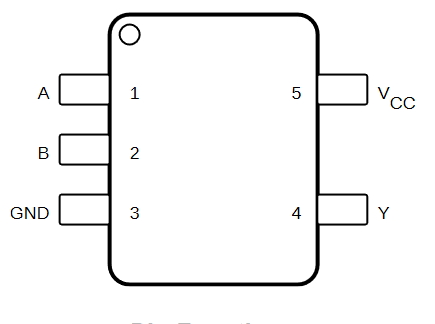

Figure 4-1 DBV, DCK, and DRL Packages5-Pin SOT-23,
SC70, and SOT(Top View)| PIN | TYPE(1) | DESCRIPTION | |
|---|---|---|---|
| NAME | NO. | ||
| A | 1 | I | Input A |
| B | 2 | I | Input B |
| GND | 3 | — | Ground Pin |
| VCC | 5 | — | Supply Pin |
| Y | 4 | O | Output |
(1) Signal Types: I = Input, O = Output, I/O = Input or Output
