5.7 Timing Requirements, VCC = 5 V ± 0.5 V
over recommended operating free-air temperature range (unless
otherwise noted) (see Load Circuit and Voltage Waveforms)
| TA = 25°C | SN54AHC594(2) | SN74AHC594 | UNIT | ||||||
|---|---|---|---|---|---|---|---|---|---|
| MIN | MAX | MIN | MAX | MIN | MAX | ||||
| tw | Pulse Duration | RCLK or SRCLK high or low | 5 | 5 | 5 | ns | |||
| RCLR or SRCLR low | 5.2 | 5.2 | 5.2 | ||||||
| tsu | Setup time | SER before SRCLK↑ | 3 | 3 | 3 | ns | |||
| SRCLK↑ before RCLK↑(1) | 5 | 5 | 5 | ||||||
| SRCLR low before SRCLK↑ | 5 | 5 | 5 | ||||||
| SRCLR high (inactive) before SRCLK↑ | 2.9 | 3.3 | 3.3 | ||||||
| RCLR high (inactive) before RCLK↑ | 3.2 | 3.7 | 3.7 | ||||||
| th | Hold time, data after CLK↑ | SER after SRCLK↑ | 2 | 2 | 2 | ns | |||
(1) This setup time allows the storage register to receive stable data from the shift register. The clocks can be tied together, in which case the shift register is one clock pulse ahead of the storage register.
(2) Product Preview

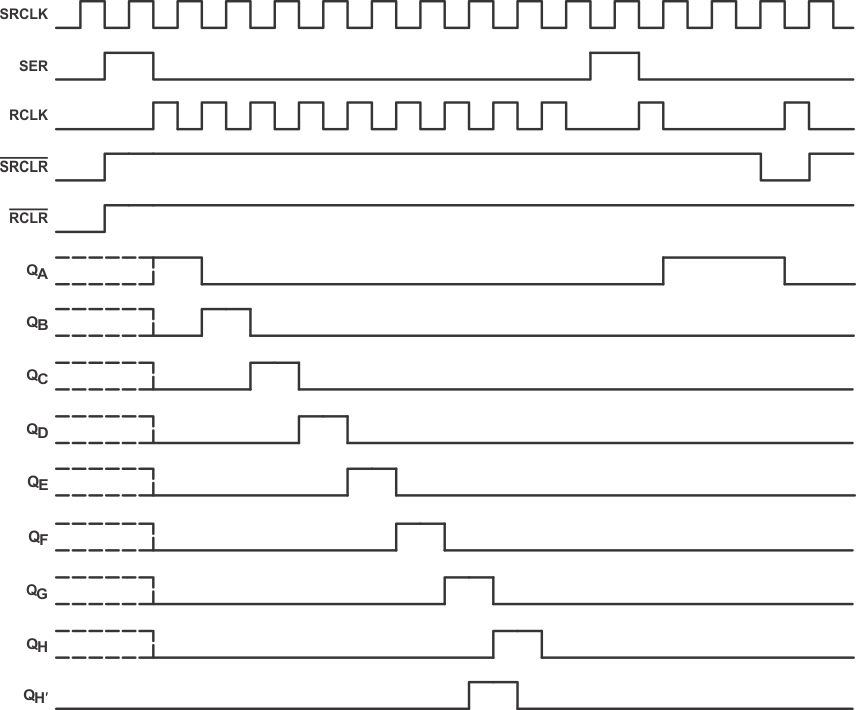

Figure 5-1 Timing Diagram
