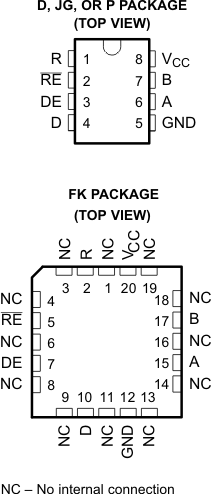

5 Pin Configuration and Functions
Table 5-1 Pin Functions
| PIN | TYPE | DESCRIPTION | ||
|---|---|---|---|---|
| NAME | SOIC,PDIP,CDIP | LCCC | ||
| R | 1 | 2 | O | Logic output RS485 data |
| RE | 2 | 5 | I | Receiver enable/disable |
| DE | 3 | 7 | I | Driver enable/disable |
| D | 4 | 10 | I | Logic input RS485 data |
| GND | 5 | 12 | - | Ground |
| A | 6 | 15 | I/O | RS485 bus pin; Non-Inverting |
| B | 7 | 17 | I/O | RS485 bus pin; Inverted |
| VCC | 8 | 20 | - | 5V Supply Voltage |
| NC | - | 1,2,3,6,8,9,11,13,14,16,18,19 | - | No Internal Connection |
