7 Parameter Measurement Information
Figure 7-1 Driver
VOD and VOC

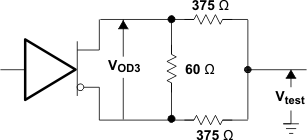

Figure 7-2 Driver
VOD3

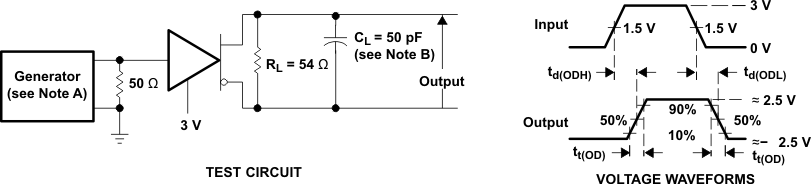

Figure 7-3 Driver
Test Circuit and Voltage Waveforms

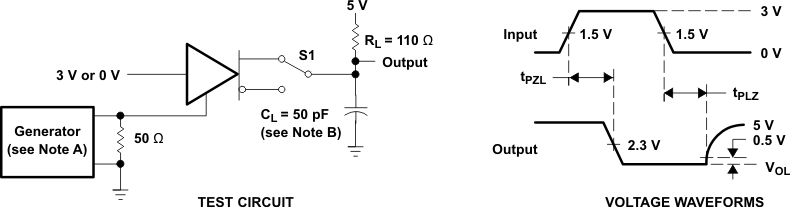

Figure 7-4 Driver
Test Circuit and Voltage Waveforms

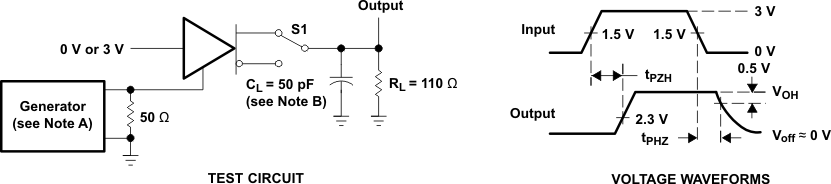

Figure 7-5 Driver
Test Circuit and Voltage WaveformsA. The input pulse is supplied by a
generator having the following characteristics: PRR ≤ 1 MHz, 50% duty cycle,
tr ≤ 6 ns, tf ≤ 6 ns, ZO = 50 Ω.
B. CL includes probe and jig
capacitance.

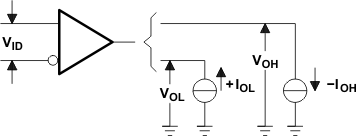

Figure 7-6 Receiver
VOH and VOL

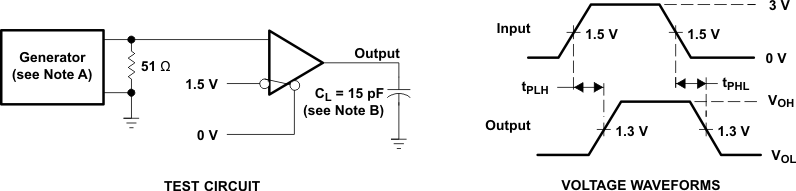

Figure 7-7 Receiver
Test Circuit and Voltage WaveformsC. The input pulse is supplied by a
generator having the following characteristics: PRR ≤ 1 MHz, 50% duty cycle,
tr ≤ 6 ns, tf ≤ 6 ns, ZO = 50 Ω.
D. CL includes probe and jig
capacitance.
A. The input pulse is supplied by a generator having the following characteristics: PRR ≤ 1 MHz, 50% duty cycle, tr ≤ 6 ns, tf ≤ 6 ns, ZO = 50 Ω.
B. CL includes probe and jig capacitance.

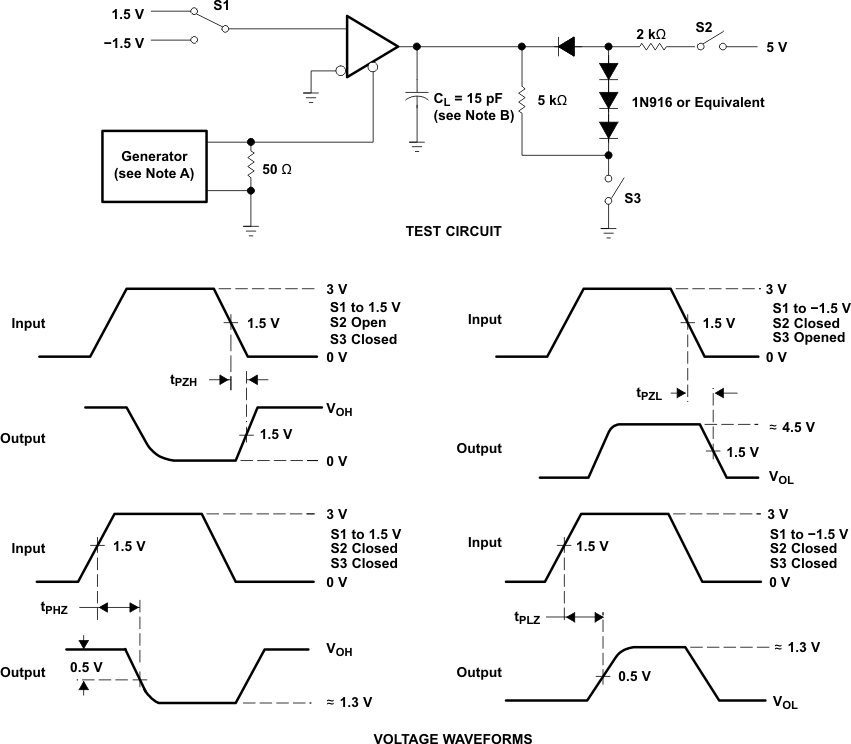

Figure 7-8 Receiver Test Circuit and Voltage Waveforms
