ZHCSTS1D November 2000 – November 2023 SN65LBC175A , SN75LBC175A
PRODUCTION DATA
5.8 Typical Characteristics

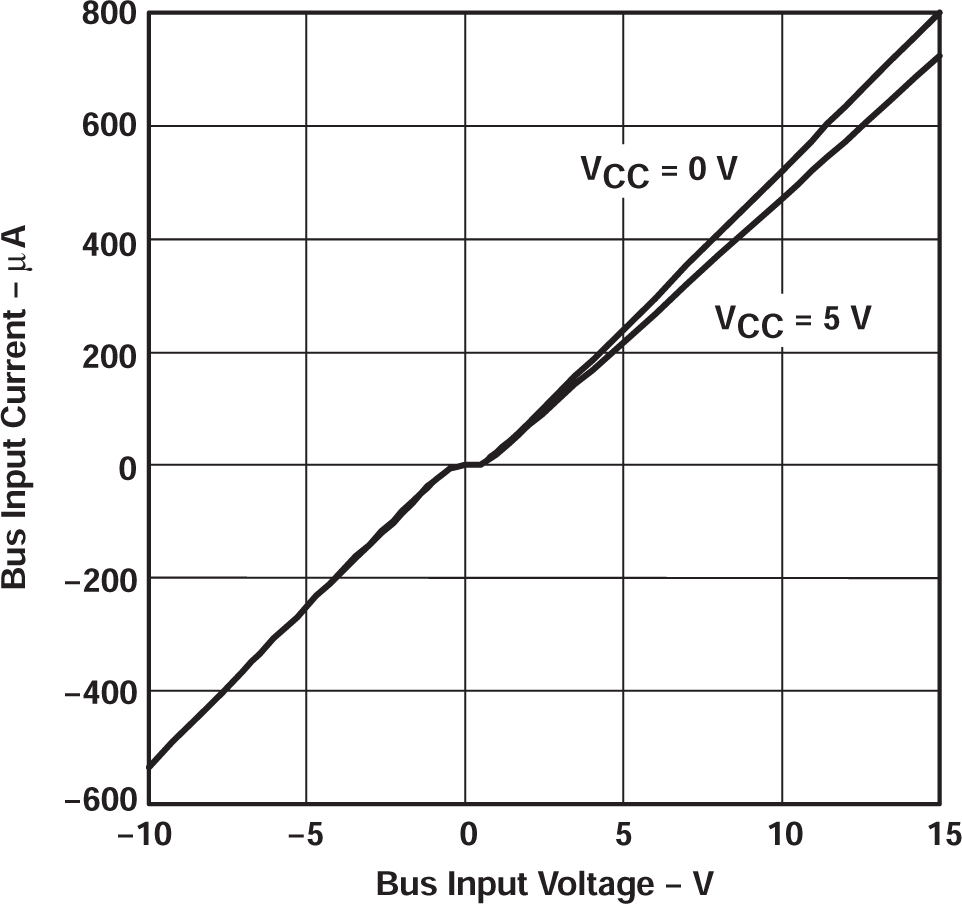

Figure 5-1 Bus Input Current vs Bus
Input Voltage

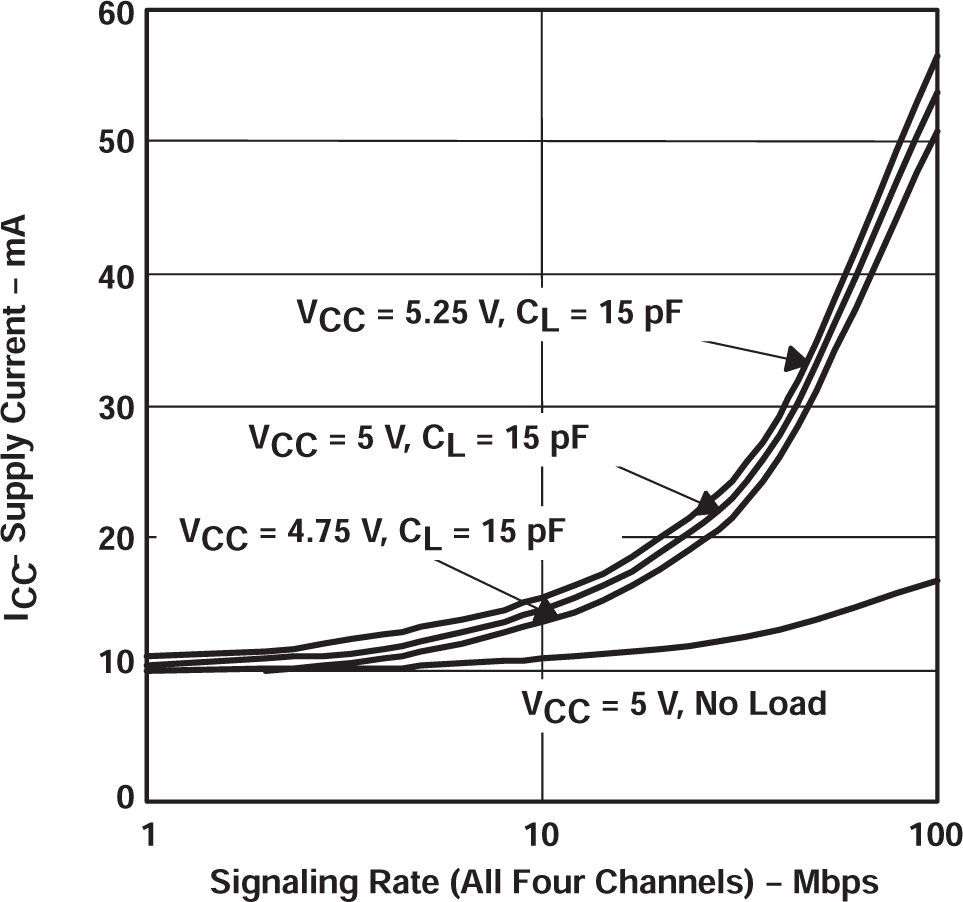

Figure 5-3 Supply Current vs
Signaling Rate (All Four Channels)

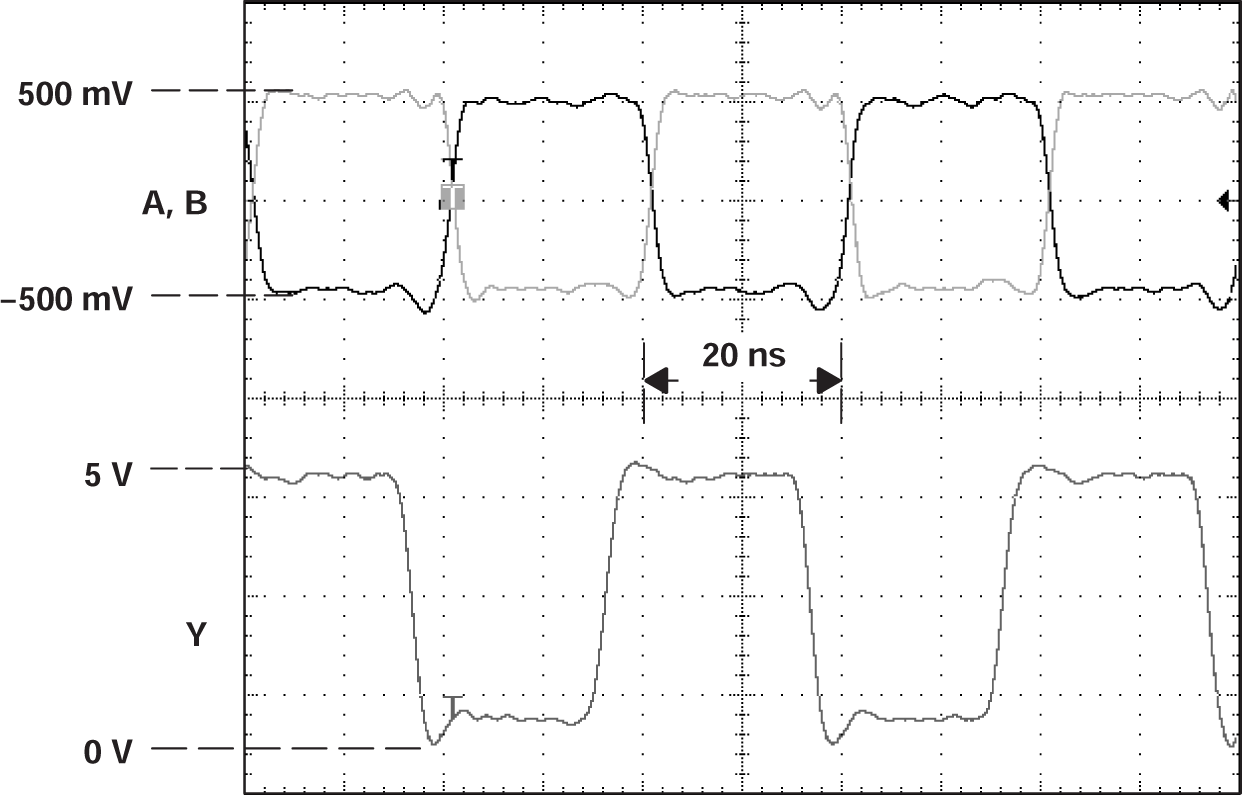

Figure 5-5 Receiver Inputs and
Outputs, 50 Mbps Signaling Rate

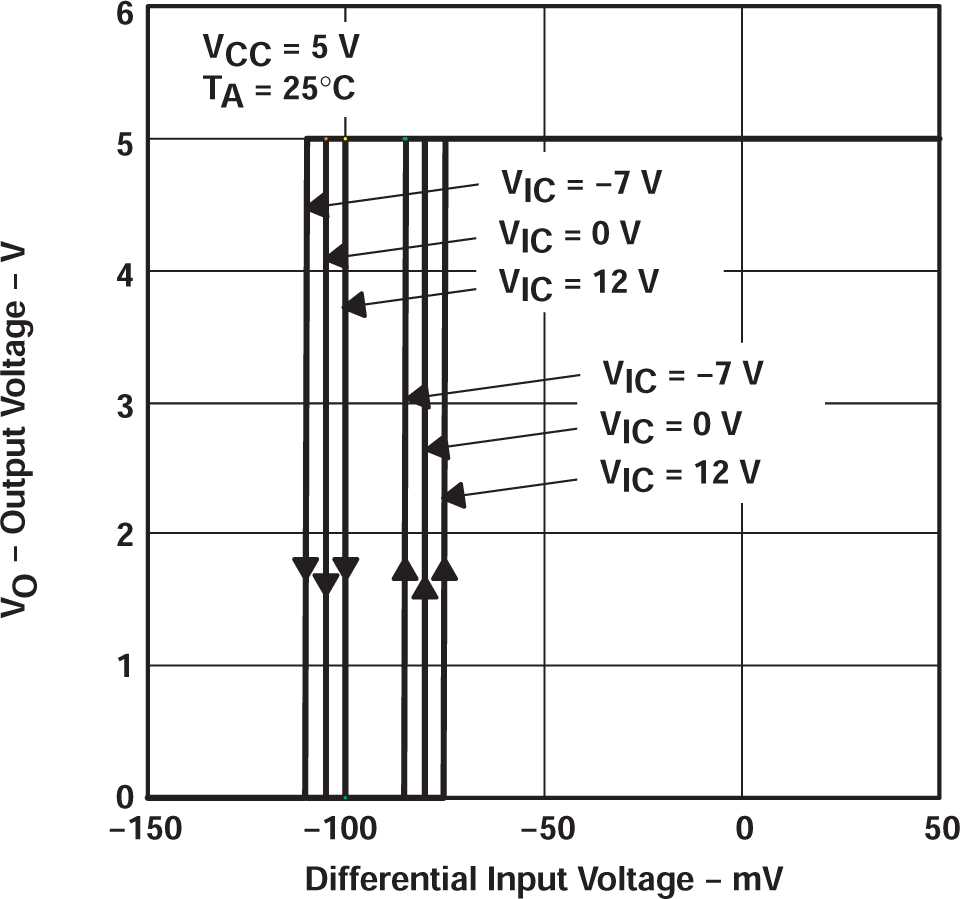

Figure 5-2 Output Voltage vs
Differential Input Voltage

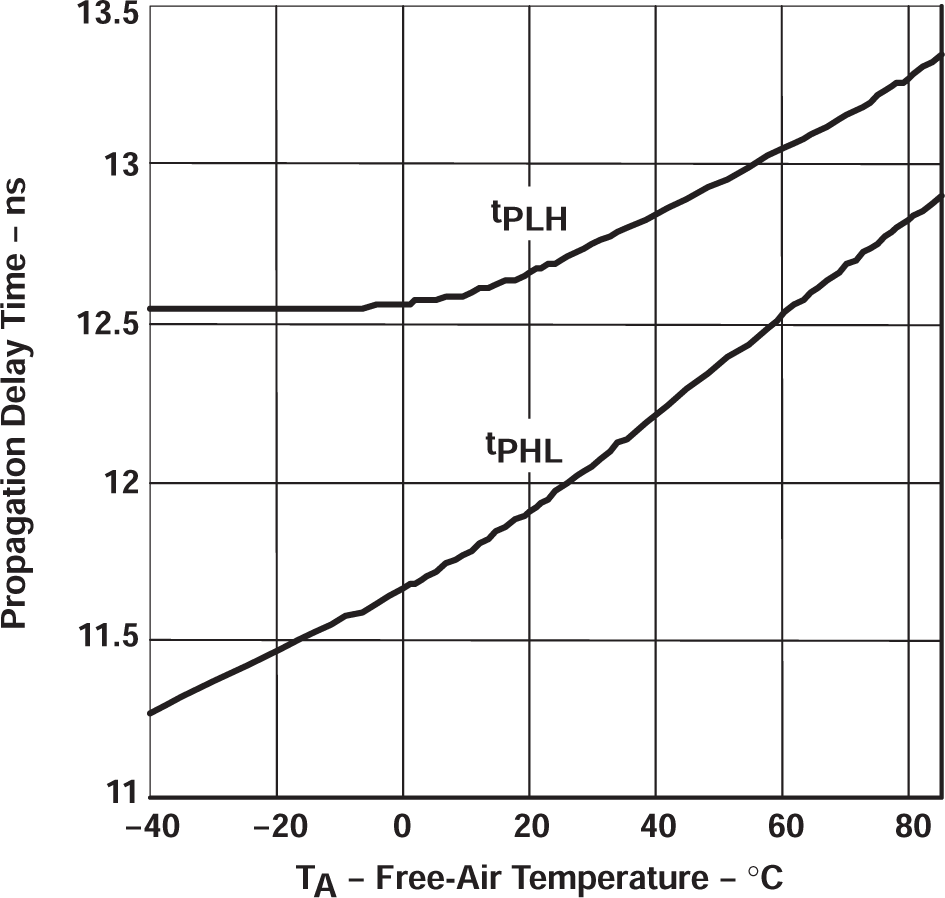

Figure 5-4 Propagation Delay Time vs
Free-air Temperature
