7.1 Device Functional Modes
Table 7-1 Functional Table (Each
Receiver)
| DIFFERENTIAL INPUTS A – B (VID) | ENABLES(1) | OUTPUT Y | |
|---|---|---|---|
| G | G | ||
| VID ≤ ?0.2 V | H | X | L |
| X | L | ||
| ?0.2 V < VID < ?0.01 V | H | X | ? |
| X | L | ||
| ?0.01 V ≤ VID | H | X | H |
| X | L | ||
| X | L | H | Z |
| OPEN | OPEN | ||
| Short circuit | H | X | H |
| X | L | ||
| Open circuit | H | X | H |
(1) H = high level, L = low level, X = irrelevant, Z =
high impedance (off), ? = indeterminate

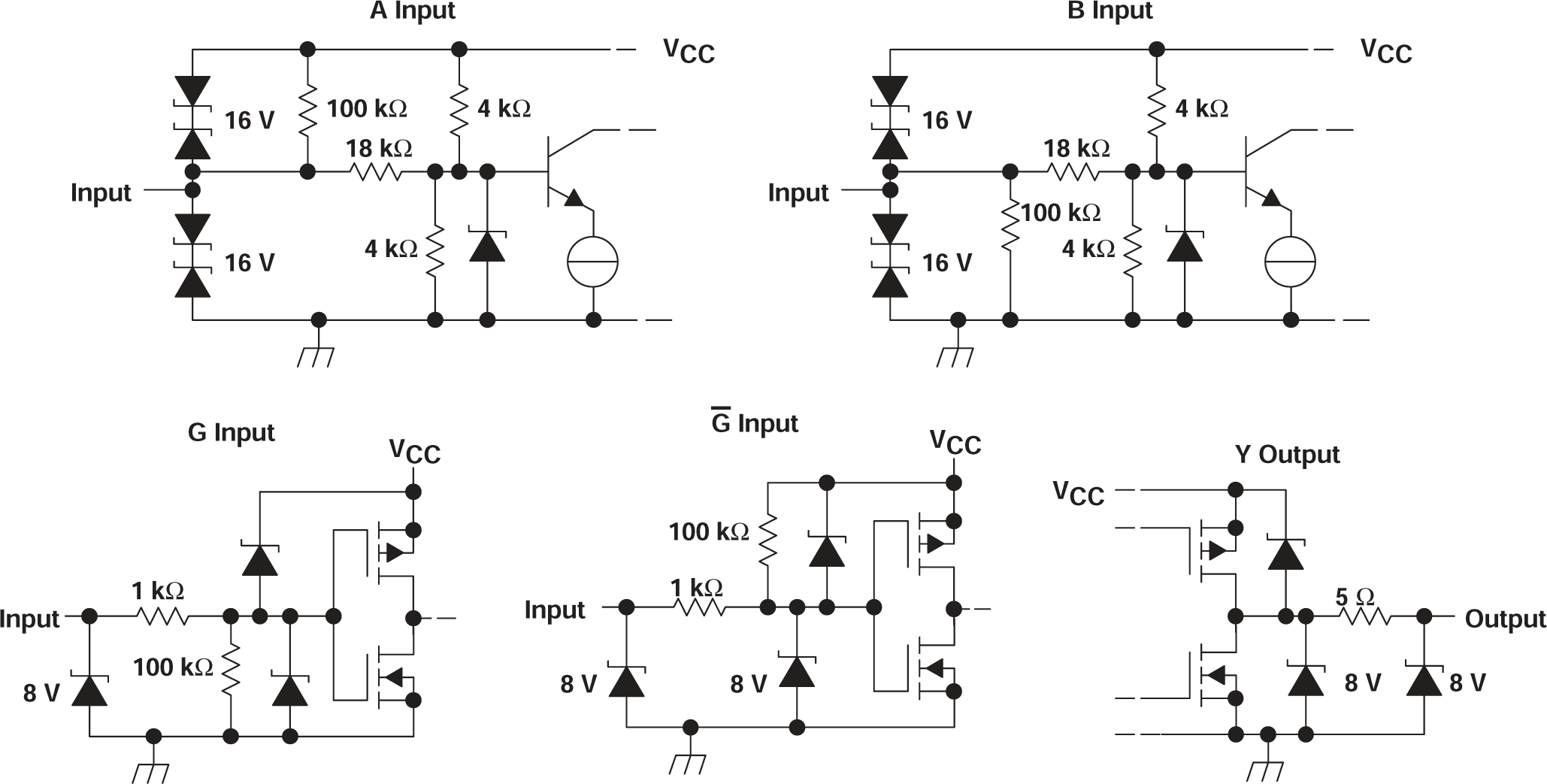

Figure 7-1 Equivalent Input and Output
Schematic Diagrams
