8 Parameter Measurement Information
Input generator rate is 100 kbps, 50% duty cycle, rise or fall time is less than 6 ns, output impedance is 50 Ω.

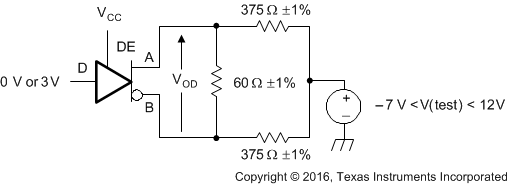

Figure 10. Measurement of Driver Differential Output Voltage With Common-Mode Load

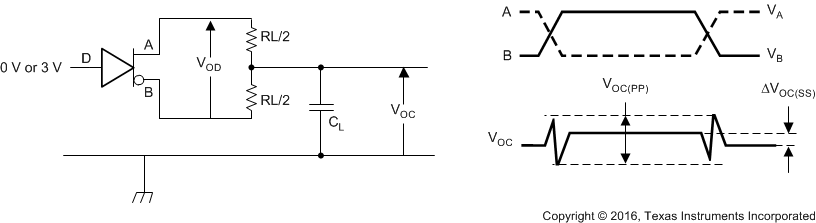

Figure 11. Measurement of Driver Differential and Common-Mode Output With RS-485 Load

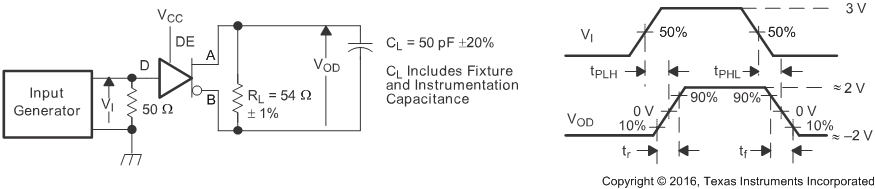

Figure 12. Measurement of Driver Differential Output Rise and Fall Times and Propagation Delays
D at 3 V to test non-inverting output, D at 0 V to test inverting output.

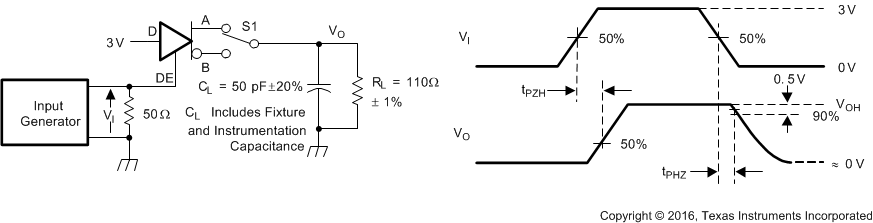

Figure 13. Measurement of Driver Enable and Disable Times With Active High Output and Pulldown Load
D at 0 V to test non-inverting output, D at 3 V to test inverting output.

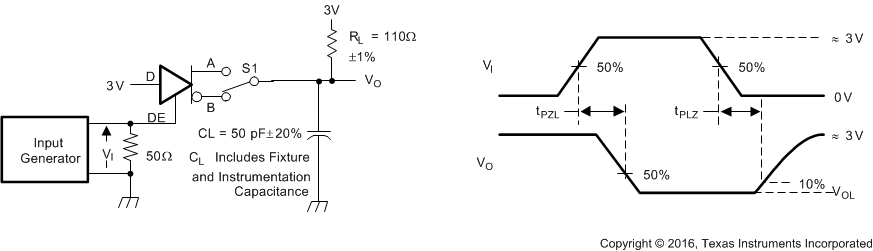

Figure 14. Measurement of Driver Enable and Disable Times With Active Low Output and Pullup Load

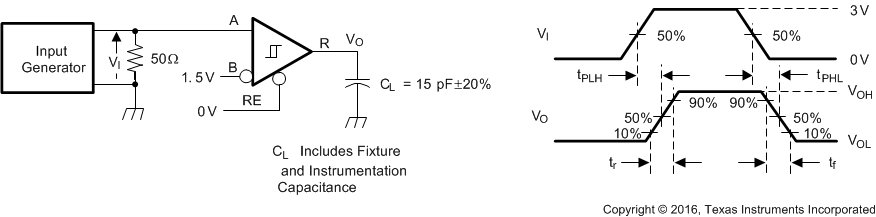

Figure 15. Measurement of Receiver Output Rise and Fall Times and Propagation Delays

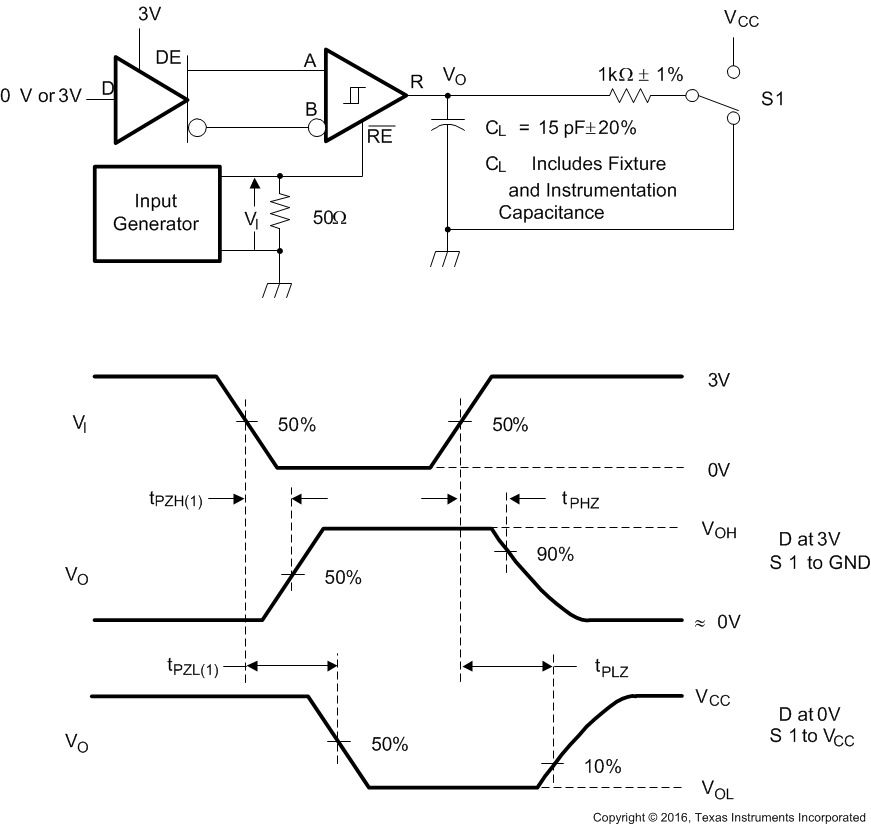

Figure 16. Measurement of Receiver Enable and Disable Times With Driver Enabled

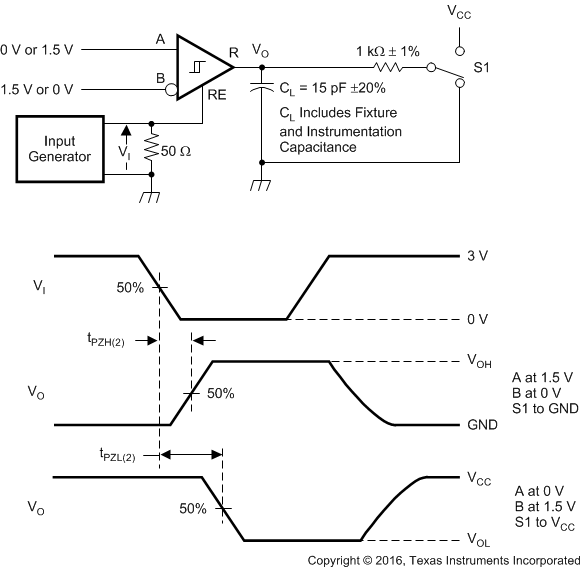

Figure 17. Measurement of Receiver Enable Times With Driver Disabled
