8 Parameter Measurement Information

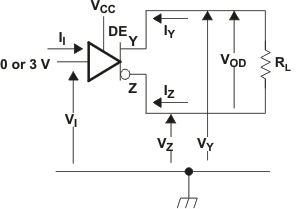

Figure 8-1 Driver
VOD Test Circuit: Voltage and Current Definitions

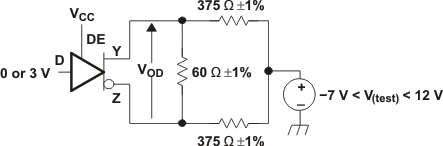

Figure 8-2 Driver

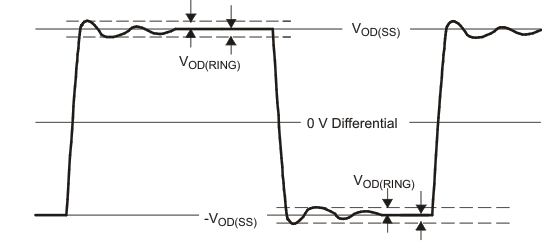

VOD With Common-Mode Loading Test CircuitVOD(RING) is measured at four points on the output waveform, corresponding to overshoot and undershoot from the VOD(H) and VOD(L) steady state values.
Figure 8-3 VOD(RING) Waveform and Definitions

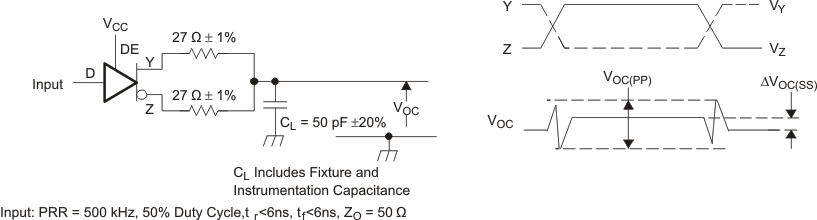

Figure 8-4 Test
Circuit and Definitions for the Driver Common-Mode Output Voltage

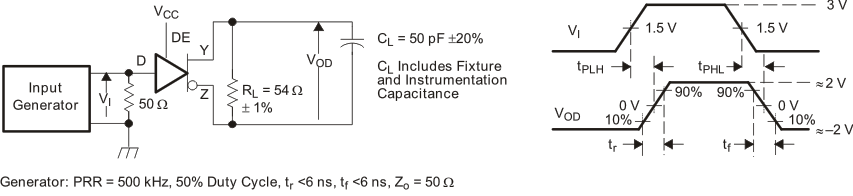

Figure 8-5 Driver
Switching Test Circuit and Voltage Waveforms

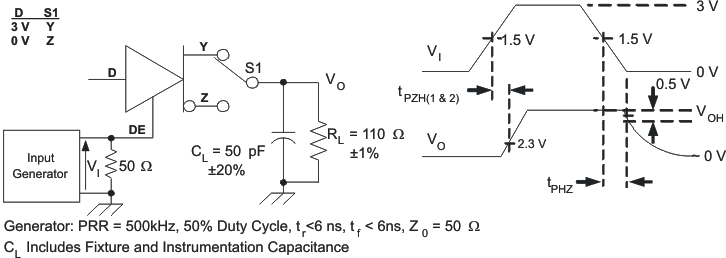

Figure 8-6 Driver
High-Level Output Enable and Disable Time Test Circuit and Voltage
Waveforms

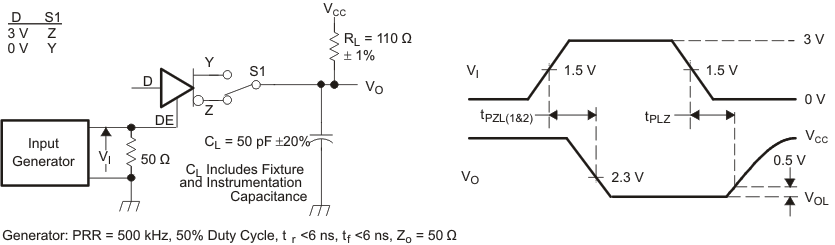

Figure 8-7 Driver
Low-Level Output Enable and Disable Time Test Circuit and Voltage
Waveforms

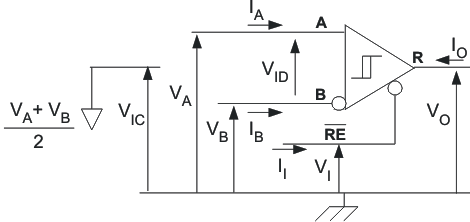

Figure 8-8 Receiver
Voltage and Current Definitions

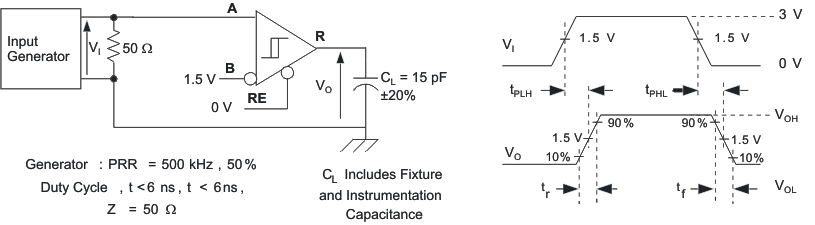

Figure 8-9 Receiver
Switching Test Circuit and Voltage Waveforms

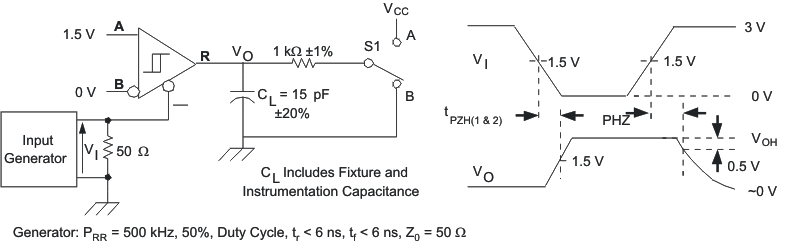

Figure 8-10 Receiver
High-Level Enable and Disable Time Test Circuit and Voltage Waveforms

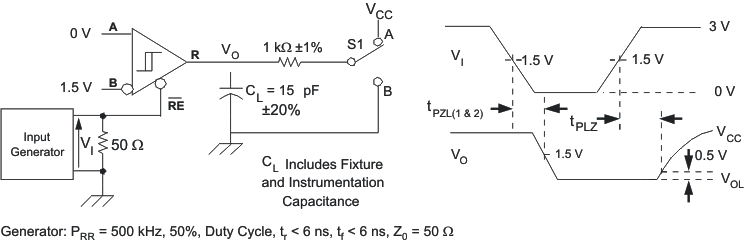

Figure 8-11 Receiver
Low-Level Enable and Disable Time Test Circuit and Voltage Waveforms

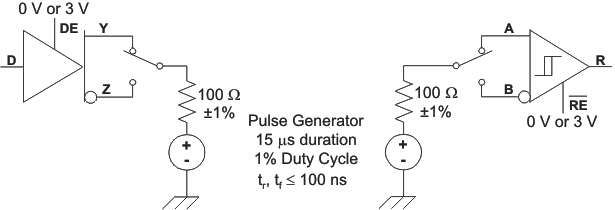

Figure 8-12 Test
Circuit, Transient Overvoltage Test
