ZHCSK15 July 2019 SN65C1168E-SEP
PRODUCTION DATA.

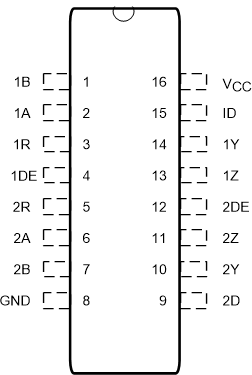

5 Pin Configuration and Functions
PW Package
16-Pin TSSOP
Top View
Pin Functions
| PIN | I/O | DESCRIPTION | |||
|---|---|---|---|---|---|
| NAME | NO. | ||||
| 1A | 2 | I | RS422 differential input (noninverting) to receiver 1 | ||
| 2A | 6 | I | RS422 differential input (noninverting) to receiver 2 | ||
| 1B | 1 | I | RS422 differential input (inverting) to receiver 1 | ||
| 2B | 7 | I | RS422 differential input (inverting) to receiver 2 | ||
| 1D | 15 | I | Logic data input to RS422 driver 1 | ||
| 2D | 9 | I | Logic data input to RS422 driver 2 | ||
| 1DE | 4 | I | Driver 1 enable (active high) | ||
| 2DE | 12 | I | Driver 2 enable (active high) | ||
| GND | 8 | — | Device ground | ||
| 1R | 3 | O | Logic data output of RS422 receiver 1 | ||
| 2R | 5 | O | Logic data output of RS422 receiver 2 | ||
| VCC | 16 | — | Power supply | ||
| 1Y | 14 | O | RS-422 differential (noninverting) driver output 1 | ||
| 2Y | 10 | O | RS-422 differential (noninverting) driver output 2 | ||
| 1Z | 13 | O | RS-422 differential (noninverting) driver output 1 | ||
| 2Z | 11 | O | RS-422 differential (noninverting) driver output 2 | ||
