6.11 Typical Characteristics
TA = 25°C

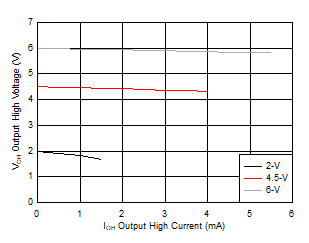

Figure 6-1 Typical output voltage in the high state (VOH)

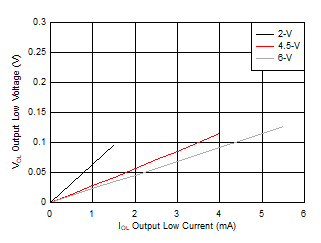

Figure 6-2 Typical output voltage in the low state (VOL)
