ZHCSRM0G December 1982 – April 2021 SN54HC20 , SN74HC20
PRODUCTION DATA
- 1 特性
- 2 應用
- 3 說明
- 4 Revision History
- 5 Pin Configuration and Functions
- 6 Specifications
- 7 Parameter Measurement Information
- 8 Detailed Description
- 9 Application and Implementation
- 10Power Supply Recommendations
- 11Layout
- 12Device and Documentation Support
- 13Mechanical, Packaging, and Orderable Information
封裝選項
請參考 PDF 數據表獲取器件具體的封裝圖。
機械數據 (封裝 | 引腳)
- J|14
散熱焊盤機械數據 (封裝 | 引腳)
訂購信息
7 Parameter Measurement Information
- Phase relationships between waveforms were chosen arbitrarily. All input pulses are supplied by generators having the following characteristics: PRR ≤ 1 MHz, ZO = 50 ?, tt < 6 ns.
- The outputs are measured one at a time, with one input transition per measurement.
A. CL= 50 pF and
includes probe and jig capacitance.
Figure 7-1 Load Circuit
A. The maximum between
tPLH and tPHL is used for
tpd.

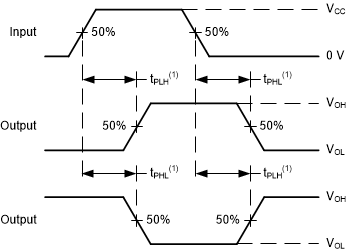

Figure 7-3 Voltage Waveforms
Propagation Delays
A. tt is the
greater of tr and tf.

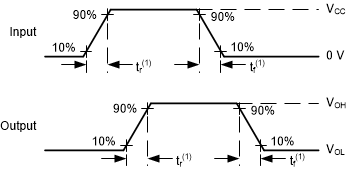

Figure 7-2 Voltage Waveforms
Transition Times
