6 Parameter Measurement Information

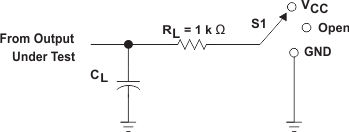

Figure 6-1 Load
Circuit ForTotem-Pole Outputs
Figure 6-2 Load
Circuit For3-State and Open-Drain Outputs
Table 6-1 Measurement Information
| TEST | S1 |
|---|---|
| tPLH, tPHL | Open |
| tPLZ, tPZL | VCC |
| tPHZ, tPZH | GND |
| Open drain | VCC |
Figure 6-3 Voltage WaveformsPulse Duration

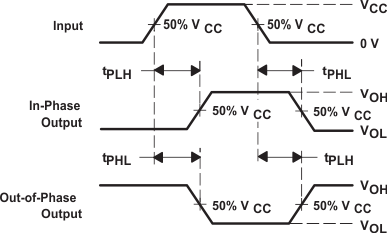

Figure 6-5 Voltage Waveforms Propagation Delay Times Inverting
and Noninverting Outputs

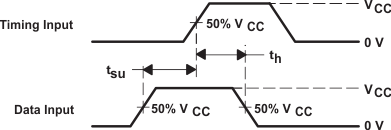

Figure 6-4 Voltage WaveformsSetup and Hold Times
A. CL includes probe and jig capacitance.
B. Waveform 1 is for an output with internal
conditions such that the output is low except when disabled by the output
control.
Waveform 2 is for an output with internal conditions such that the output is high except when disabled by the output control.
Waveform 2 is for an output with internal conditions such that the output is high except when disabled by the output control.
C. All input pulses are supplied by generators having
the following characteristics: PRR ≤ 1 MHz, ZO = 50 Ω, tr
≤ 3 ns,
tf ≤ 3 ns.
tf ≤ 3 ns.
D. The outputs are measured one at a time with one
input transition per measurement.
E. All parameters and waveforms are not applicable to
all devices.
Figure 6-6 Voltage Waveforms Enable and Disable Times Low- and
High-Level Enabling
