SDLS032H December 1983 – September 2016 SN5407 , SN5417 , SN7407 , SN7417
PRODUCTION DATA.
- 1 Features
- 2 Applications
- 3 Description
- 4 Revision History
- 5 Pin Configuration and Functions
- 6 Specifications
- 7 Parameter Measurement Information
- 8 Detailed Description
- 9 Application and Implementation
- 10Power Supply Recommendations
- 11Layout
- 12Device and Documentation Support
- 13Mechanical, Packaging, and Orderable Information
6 Specifications
6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted)(1)| MIN | MAX | UNIT | |||
|---|---|---|---|---|---|
| VCC | Supply voltage | 7 | V | ||
| VI | Input voltage(2) | 5.5 | V | ||
| VO | Output voltage(2)(3) | SN5407, SN7407 | 30 | V | |
| SN5417, SN7417 | 15 | ||||
| TJ | Junction temperature | 150 | ºC | ||
| Tstg | Storage temperature | –65 | 150 | ºC | |
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) All voltage values are with respect to GND.
(3) This is the maximum voltage that can safely be applied to any output when it is in the OFF state.
6.2 ESD Ratings
| VALUE | UNIT | |||
|---|---|---|---|---|
| SN7407 AND SN7417 | ||||
| V(ESD) | Electrostatic discharge | Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) | ±2000 | V |
| Charged-device model (CDM), per JEDEC specification JESD22-C101(2) | ±1000 | |||
| SN5407 AND SN5417 | ||||
| V(ESD) | Electrostatic discharge | Human-body model (HBM) | ±2000 | V |
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
6.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)(1)| MIN | NOM | MAX | UNIT | |||
|---|---|---|---|---|---|---|
| VCC | Supply voltage | SN5407, SN5417 | 4.5 | 5 | 5.5 | V |
| SN7407, SN7417 | 4.75 | 5 | 5.25 | |||
| VIH | High-level input voltage | 2 | V | |||
| VIL | Low-level input voltage | 0.8 | V | |||
| VOH | High-level output voltage | SN5407, SN7407 | 30 | V | ||
| SN5417, SN7417 | 15 | |||||
| IOL | Low-level output current | SN5407, SN5417 | 30 | mA | ||
| SN7407, SN7417 | 40 | |||||
| TA | Operating free-air temperature | SN5407, SN5417 | –55 | 125 | °C | |
| SN7407, SN7417 | 0 | 70 | ||||
(1) All unused inputs of the device must be held at VCC or GND to ensure proper device operation. See Implications of Slow or Floating CMOS Inputs,.
6.4 Thermal Information
| THERMAL METRIC(1) | SN7407 | SN7417 | UNIT | ||||
|---|---|---|---|---|---|---|---|
| D (SOIC) | N (PDIP) | NS (SO) | D (SOIC) | N (PDIP) | |||
| 14 PINS | 14 PINS | 14 PINS | 14 PINS | 14 PINS | |||
| RθJA | Junction-to-ambient thermal resistance(2) | 86.8 | 52.1 | 85.9 | 88.8 | 52.1 | °C/W |
| RθJC(top) | Junction-to-case (top) thermal resistance | 47.1 | 39.4 | 43.9 | 50.4 | 39.4 | °C/W |
| RθJB | Junction-to-board thermal resistance | 41 | 32 | 44.7 | 43 | 32 | °C/W |
| ψJT | Junction-to-top characterization parameter | 15.6 | 24.2 | 14.6 | 16.5 | 24.2 | °C/W |
| ψJB | Junction-to-board characterization parameter | 40.8 | 31.8 | 44.4 | 42.8 | 31.8 | °C/W |
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report.
(2) The package thermal impedance is calculated in accordance with JESD 51-7.
6.5 Electrical Characteristics
over recommended operating free-air temperature range (unless otherwise noted)(2)(1)| PARAMETER | TEST CONDITIONS | MIN | TYP | MAX | UNIT | ||
|---|---|---|---|---|---|---|---|
| VIK | Input clamp voltage | VCC = MIN, II = –12 mA | –1.5 | V | |||
| VOL | Low-level output voltage | VCC = MIN, VIL = 0.8 V |
IOL = 16 mA | 0.4 | V | ||
| IOL = 30 mA, SN5407, SN5417 | 0.7 | ||||||
| IOL = 40 mA, SN7407, SN7417 | 0.7 | ||||||
| IOH | High-level output current | VCC = MIN, VIH = 2 V |
VOH = 30 V, SN5407, SN7407 | 0.25 | mA | ||
| VOH = 15 V, SN5417, SN7417 | 0.25 | ||||||
| II | Input current | VCC = MAX, VI = 5.5 V | 1 | mA | |||
| IIH | High-level input current | VCC = MAX, VIH = 2.4 V | 40 | µA | |||
| IIL | Low-level input current | VCC = MAX, VIL = 0.4 V | –1.6 | mA | |||
| ICCH | High-level supply current | VCC = MAX | 29 | 41 | mA | ||
| ICCL | Low-level supply current | VCC = MAX | 21 | 30 | mA | ||
(1) For conditions shown as MIN or MAX, use the appropriate value specified under recommended operating conditions.
(2) All typical values are at VCC = 5 V, TA = 25°C.
6.6 Switching Characteristics
VCC = 5 V, TA = 25°C (see Figure 2)| PARAMETER | FROM (INPUT) | TO (OUTPUT) | TEST CONDITIONS | MIN | TYP | MAX | UNIT |
|---|---|---|---|---|---|---|---|
| tPLH | A | Y | RL = 110 Ω, CL = 15 pF | 6 | 10 | ns | |
| tPHL | 20 | 30 | |||||
| tPLH | A | Y | RL = 150 Ω, CL = 50 pF | 15 | ns | ||
| tPHL | 26 |
6.7 Typical Characteristics

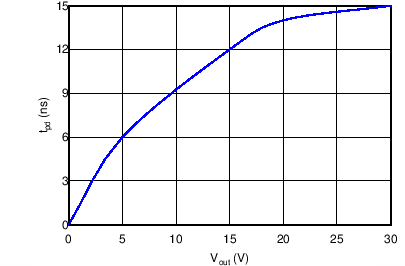

Figure 1. Time Low to High vs VOUT
