11 Power Supply Recommendations

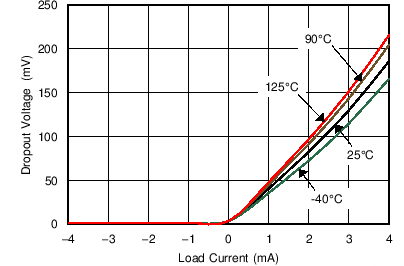

The REF60xx family of references have extremely low dropout voltage. The dropout specifications can be found in the Electrical Characteristics section. A minimum 0.1 µF decoupling capacitor must be connected between the VIN and GND_F pins of the REF60xx. A typical dropout voltage versus load is shown in Figure 61.
