9 Application and Implementation
NOTE
Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality.
9.1 Application Information
The PCM514x family is flexible, and this flexibility gives rise to a number of design questions that define the design requirements for a given application.
9.2 Typical Application

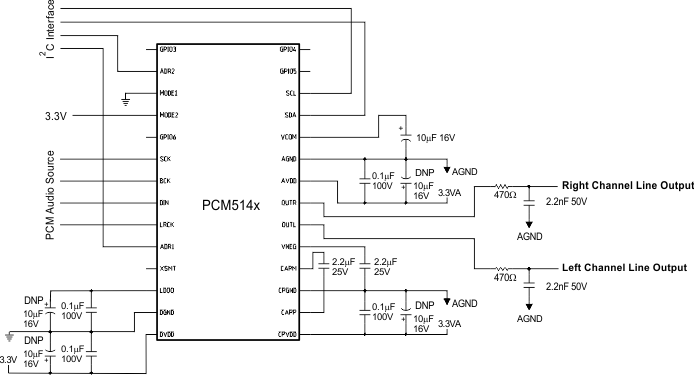

Figure 77. Simplified Schematic, Hardware-Controlled Subsystem
9.2.1 Design Requirements
- Single-ended 2.1-VRMS analog outputs
- 3-wire I2S interface (BCK PLL)
- Single 3.3-V supply
9.2.2 Detailed Design Procedure
- Clock and PLL setup (See Reset and System Clock Functions.) Ensure incoming BCK meets minimum requirements.
- XSMT pin setup for 12-V monitoring (See External Power Sense Undervoltage Protection Mode.)
- Single-supply 3.3-V operation (See Setting Digital Power Supplies and I/O Voltage Rails.)
9.2.3 Application Curve
Figure 78. PCM5141A FFT Plot, DC to 20 kHz With a 1-kHz, –60-dBFS Input
