8.3.6.2.1.4 Sampling Rate: 32 kHz or 29.4 kHz
Figure 8-15 and Figure 8-16 respectively show the magnitude response and the pass-band ripple for a decimation filter with a sampling rate of 32 kHz or 29.4 kHz. Table 8-11 lists the specifications for a decimation filter with an 32-kHz or 29.4-kHz sampling rate.

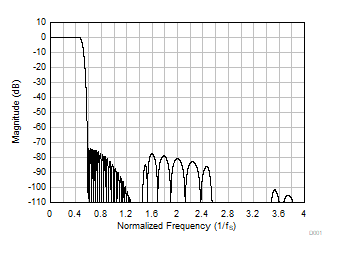

Figure 8-15 Linear Phase Decimation Filter Magnitude Response

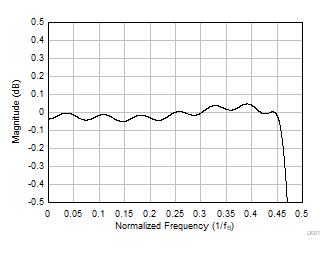

Figure 8-16 Linear Phase Decimation Filter Pass-Band RippleTable 8-11 Linear Phase Decimation Filter Specifications
| PARAMETER | TEST CONDITIONS | MIN | TYP | MAX | UNIT |
|---|---|---|---|---|---|
| Pass-band ripple | Frequency range is 0 to 0.454 × fS | –0.05 | 0.05 | dB | |
| Stop-band attenuation | Frequency range is 0.58 × fS to 4 × fS | 73.7 | dB | ||
| Frequency range is 4 × fS onwards | 107.2 | ||||
| Group delay or latency | Frequency range is 0 to 0.454 × fS | 16.9 | 1/fS |
