7 Parameter Measurement Information
CL includes probe and
jig capacitance.
All inputs are supplied by
generators having the following characteristics: PRR ≤ 10 MHz, ZO =
50 ?, tr/tf ≤ 30 ns.
Not all parameters and waveforms
are applicable to all devices.

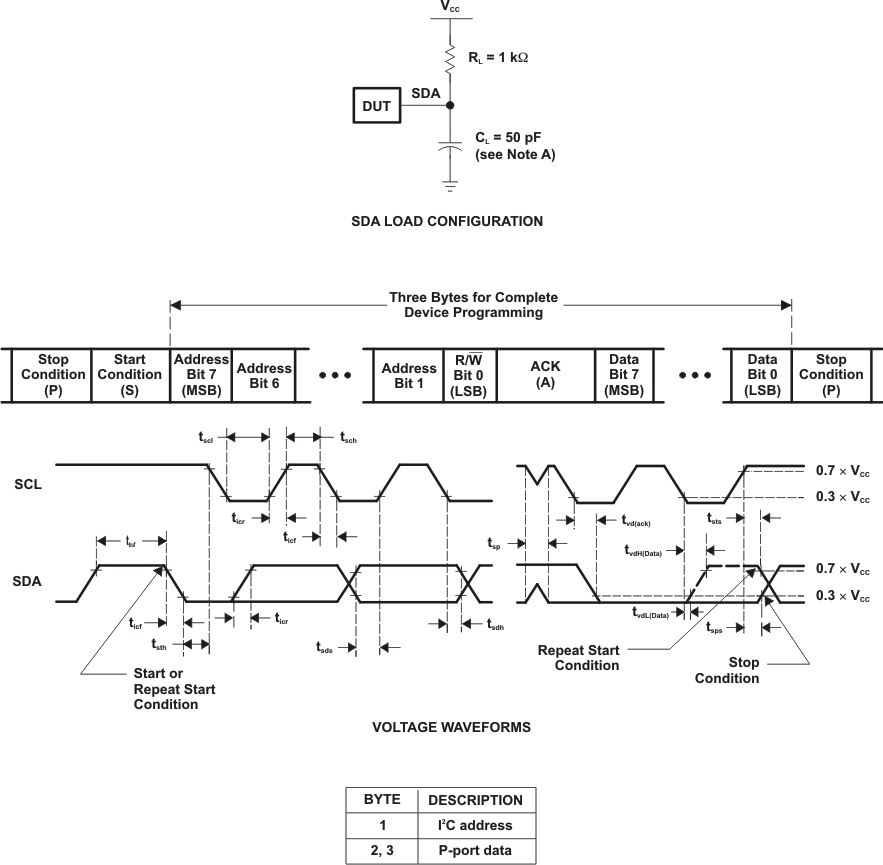

Figure 7-1 I2C Load Circuit and Voltage Waveforms
CL includes probe and
jig capacitance.
All inputs are supplied by
generators having the following characteristics: PRR ≤ 10 MHz, ZO =
50 ?, tr/tf ≤ 30 ns.
I/Os are configured as
inputs.
Not all parameters and waveforms
are applicable to all devices.

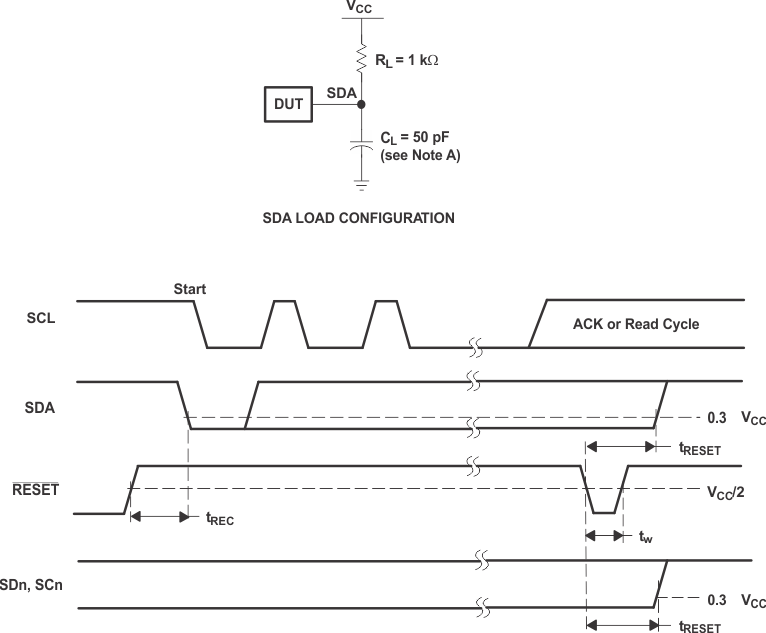

Figure 7-2 Reset
Load Circuit and Voltage Waveforms
