9.1 Functional Block Diagram
Pin numbers shown are for DB,
DGV, DW, or PW package.
All I/Os are set to inputs at
reset.

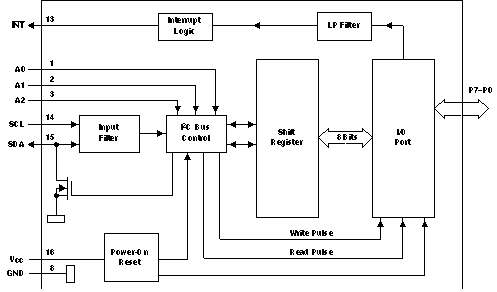

Figure 9-1 Logic
Diagram (Positive Logic)
At power-on reset, all registers
return to default values.

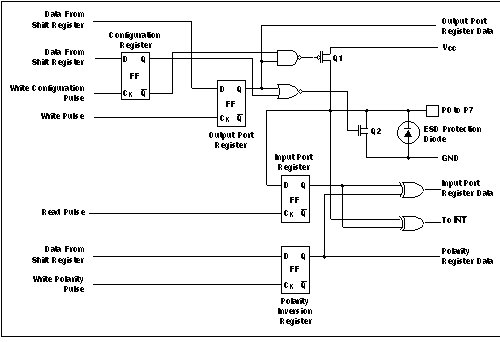

Figure 9-2 Simplified Schematic of P0 to P7
