8 Parameter Measurement Information
A. CL includes probe and
jig capacitance
B. The pulse generator has the
following characteristics: PRR = 5 kbit/s, ZO = 50 Ω, 50 % duty
cycle, tr ≤ 10 ns, tf ≤ 10 ns.
Figure 8-1 Driver
Slew Rate
A. CL includes probe and
jig capacitance
B. The pulse generator has the
following characteristics: PRR = 5 kbit/s, ZO = 50 Ω, 50 % duty
cycle, tr ≤ 10 ns, tf ≤ 10 ns.
Figure 8-2 Driver
Pulse Skew
A. CL includes probe and
jig capacitance
B. The pulse generator has the
following characteristics: PRR = 5 kbit/s, ZO = 50 Ω, 50 % duty
cycle, tr ≤ 10 ns, tf ≤ 10 ns.

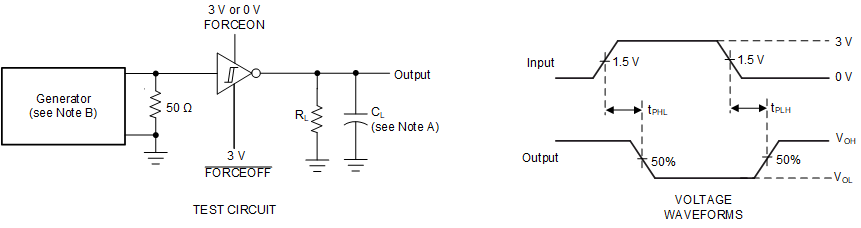

Figure 8-3 Receiver
Propagation Delay Times
A. CL includes probe and
jig capacitance
B. The pulse generator has the
following characteristics: PRR = 5 kbit/s, ZO = 50 Ω, 50 % duty
cycle, tr ≤ 10 ns, tf ≤ 10 ns.
C. tPLZ and
tPHZ are the same as tdis.
D. tPZL and
tPZH are the same as ten.

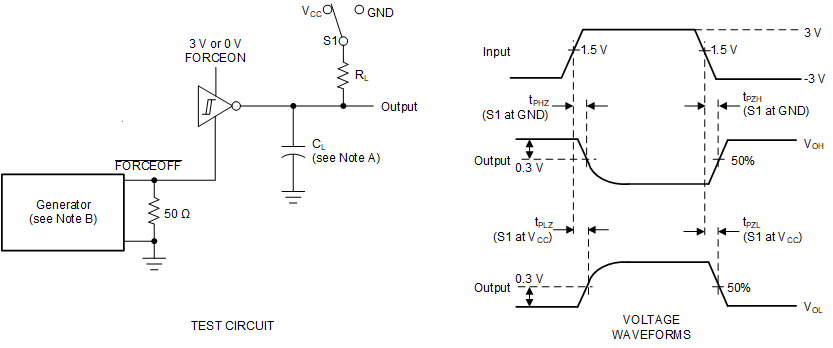

Figure 8-4 Receiver
Enable and Disable Times
A. CL includes probe and
jig capacitance.
B. The pulse generator has the
following characteristics: PRR = 5 kbit/s, ZO = 50 Ω, 50 % duty
cycle, tr ≤ 10 ns, tf ≤ 10 ns.

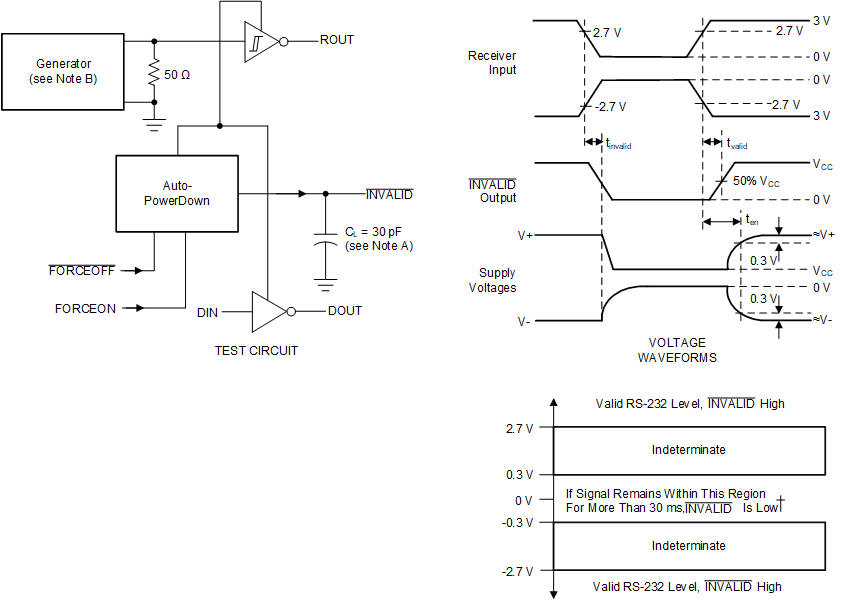

Figure 8-5 INVALID Propagation Delay Times and Supply Enabling
Time
