8.4 Device Functional Modes
Table 8-1, Table 8-2, and Table 8-3 show the behavior of the driver, receiver, and INVALID(activelow) features under all possible relevant combinations of inputs.
Table 8-1 Driver(1)
| INPUTS | OUTPUT | DRIVER STATUS | |||
|---|---|---|---|---|---|
| DIN | FORCEON | FORCEOFF | VALID RIN RS-232 LEVEL | DOUT | |
| X | X | L | X | Z | Powered off |
| L | H | H | X | H | Normal operation with automatic power down disabled |
| H | H | H | X | L | |
| L | L | H | Yes | H | Normal operation with automatic power down enabled |
| H | L | H | Yes | L | |
| L | L | H | No | Z | Powered off by automatic power down feature |
| H | L | H | No | Z | |
(1) H = high level, L = low level, X = irrelevant, Z = high impedance, Yes = |RIN| > 2.7 V, No = |RIN| <0.3 V
Table 8-2 Receiver(1)
| INPUTS | OUTPUT | RECEIVER STATUS | ||
|---|---|---|---|---|
| RIN | EN | VALID RIN RS-232 LEVEL | ROUT | |
| X | H | X | Z | Output off |
| L | L | X | H | Normal operation |
| H | L | X | L | |
| Open | L | No | H | |
(1) H = high level, L = low level, X = irrelevant, Z = high impedance (off), Open = input disconnected or connected driver off
Table 8-3 INVALID(1)
| INPUTS | OUTPUT | |||
|---|---|---|---|---|
| RIN | FORCEON | FORCEOFF | EN | INVALID |
| L | X | X | X | H |
| H | X | X | X | H |
| Open | X | X | X | L |
(1) H = high level, L = low level, X = irrelevant, Z = high impedance (off), Open = input disconnected or connected driver off

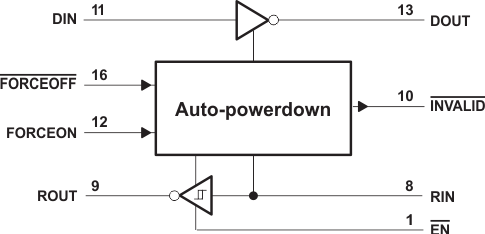

Figure 8-1 Logic Diagram
