10 Layout
10.1 Layout Guidelines
- The V+ pin should be bypassed to ground with a low-ESR capacitor.
- The optimum placement is closest to the V+ and ground pins.
- Take care to minimize the loop area formed by the bypass capacitor connection between V+ and ground.
- The ground pin should be connected to the PCB ground plane at the pin of the device.
- The feedback components should be placed as close to the device as possible minimizing strays.
10.2 Layout Example

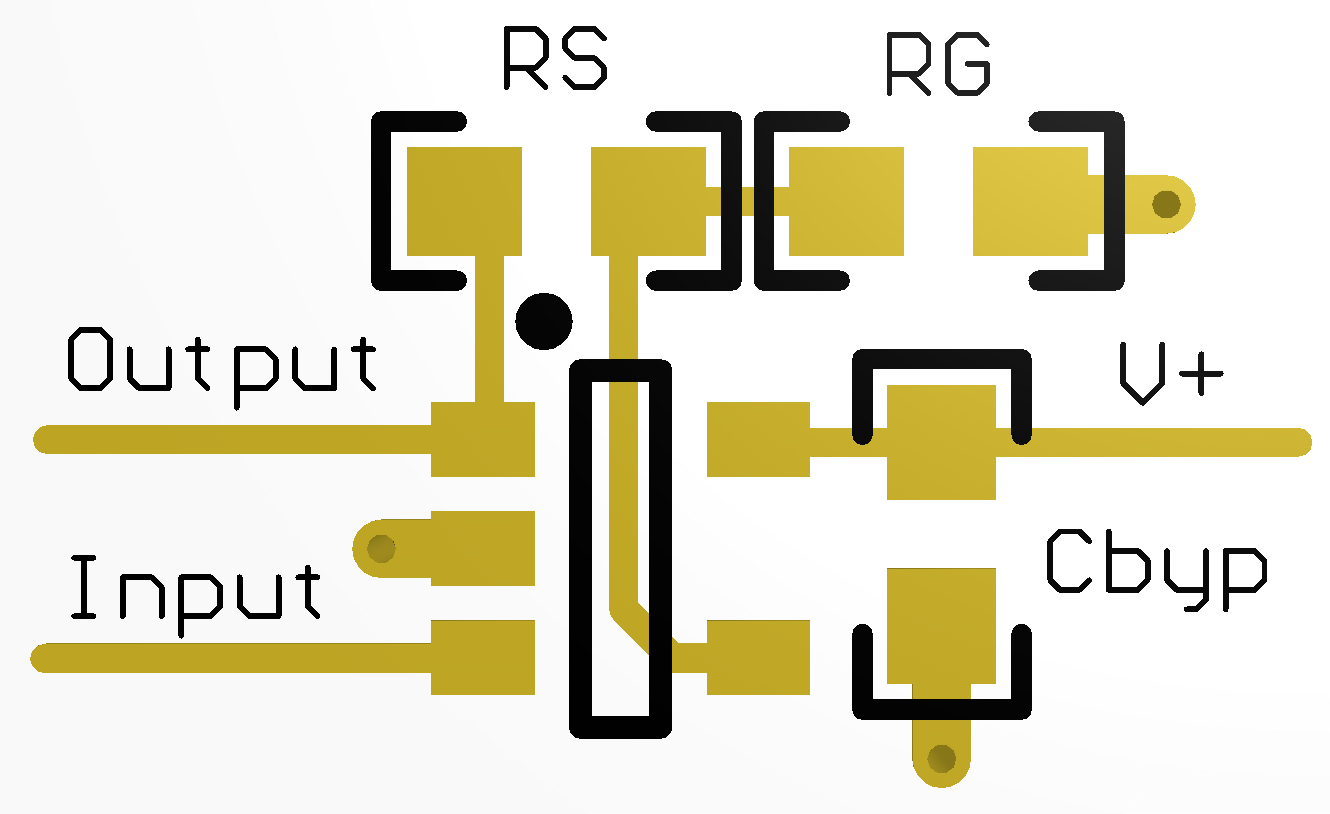

Figure 31. SOT-23 Layout Example
